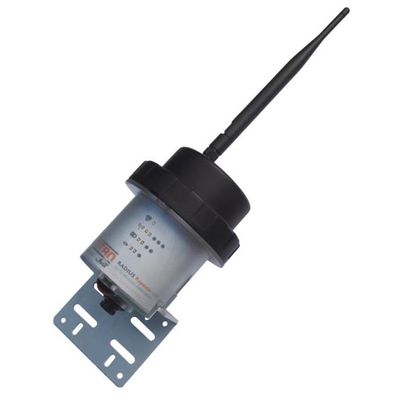

Titan - Radius Repeater Uses Unlicensed Wireless Spectrum

FromGroPoint - by RioT Technology Corp.

SHARE

The Radius Repeater uses unlicensed wireless spectrum to extend the range of a Radius Mote so it can be located up to 15km farther away from a central Radius Gateway. Radius networks incorporate advanced low power, long range wireless technologies with proprietary mechanical engineering, power management and power supply to eliminate the need for expensive supporting infrastructure (large batteries, solar panels, enclosures, cables). By eliminating this infrastructure as well as the need for a data logger and communications uplink at each sensor site, the cost of the entire sensor network is reduced dramatically.

Most popular related searches

mounting bracket

battery management

solar generator

solar power generation

power engineering

Extends the range of a wireless SDI-12 LPWAN network by an additional (up to) 15km.
Can connect up to 6 Motes/slaves per repeater.
Up to 3 repeaters can be part of a single network.

SDI-12 Wireless LPWAN Network Extender

Connects directly to SDI-12 sensors (up to 10 per Mote).
Motes connect to a Gateway, or to Repeaters, to extend their range.

Create a Seamless, Low-Power, Wide-Area Wireless Network (LPWAN) for SDI-12 Sensors

All-in-one: Integrated radio, battery, power management, enclosure, mounting bracket—nothing else required.
Automatic: devices self-configure and form a wireless network automatically.
Simple: works out of the box. No tools required to install.
Extremely low power consumption: solar panel generally not needed, lasts for years without needing recharging.
Durable: IP67/IP68 rating for reliable long-term deployments in harsh environments.
Scalable: Up to 10 sensors per Mote/slave, 6 Motes/slaves per repeater, 3 repeaters per network.

Communications

Range:

Up to 15 km (9.3 miles). Signals can penetrate certain foliage, buildings and obstructions.
Range depends on antenna height/type and obstacles in path of line of sight.

Wireless frequency: 915 and 868 MHz certified, 860-930 MHz frequency range

Sensors

Maximum number of sensors: 10
Sensor power: 12VDC switched, during measure- ment
Maximum output current: 138 mA (12V), up to 500 mA pulse (12V) with capacitor battery option (available 2018-Q3)
Sensor protocol: SDI-12, v.1.3
On-board sensors: Temperature sensor for optimizing power management and battery charging in cold operations.

Electrical

Current consumption:

Listen/idle: 300 μA
Data transmit: 128 mA
Stop/idle: 1.65 μA

Input voltage: 10-18V, reverse polarity protected.
Internal battery options:

Primary: 8.6Ah - 38Ah, 3.6V
Secondary: 10Ah Li-ion rechargeable
Custom option: Hybrid

TX output power: 128 mA
Optional external battery pack: 10-18V

Environmental

Operating temperature: -40°C to 75°C
Storage temperature: -40°C to 75°C

Physical

LED indicators:
RSSI, sensor, battery, operating status
Weight (excluding battery): 12.8 oz (400g)
Weight (including full battery configuration): 19.2 oz (600g)
Warm-up time: 30s
External antenna: Wip antenna, high-gain omnidirectional
Security: 128 bit AES encryption
