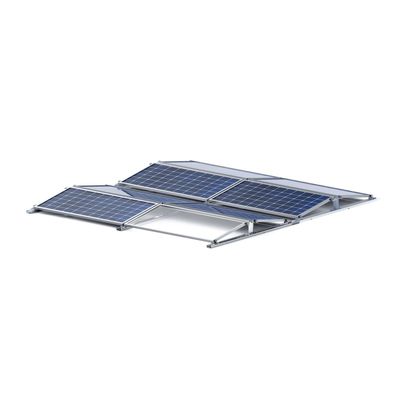

KB-Racking - Model AeroRack East West -Rail-Based Solar Panel Mounting System
FromKB Racking
AeroRack East West is the latest aerodynamic rail-based mounting solution. KB Racking has refined its rail based solution with an east-west orientation, to provide customers with the same core elements of integrated wire management that allows for installers to install more panels, while saving space on the roof. With an east-west configuration, this system offers best value by reducing costs and installation time. AeroRack East West features low ballast requirements and structural integrity, while offering customizable solutions with its flexibility in row spacing and tilt angle.
Most popular related searches
solar panel mounting system
wind tunnel testing
solar panel mounting
photovoltaic module
solar panel
solar panel system
solar mounting system
solar mounting
- Conforms to UL standard 2703. Certified to ULC/ORD STD C1703
- Rail based design provides stiffness, reducing ballast requirements and roof loads
- Non-penetrating design prevents damage to your roof
- Windshields include integrated press-fit nuts for a faster installation
- Aluminum components ensure long lasting performance
- Pre-attached rubber mats offer additional protection for the roof
- 25-year standard product warranty
- Inclinations: 5°, 10°, 15°, 20° (Landscape), 3°, 5° (Portrait)
- Distribution Load: 2 – 5 lbs/ ft²
- Orientation Panel: Landscape, Portrait
- Panel Type: Frame PV module
- Material: 3000 series Aluminum
- Module Spacing: 0.2” - 15”/0.01m - 0.4m (Landscape/Portrait)
- Roof Type: All types of flat roofs
- Roof Pitch: Up to 5°
- Grounding Method: Grounding once per array - ETL Certified grounding method
- Building Height: Up to 60’/ 18.3m (higher upon request)
- Ballast Weight: Dependent on wind zone and exposure category
- Wind Speed: Up to 170 mph (274 km/h)
- Wind Tunnel Testing: Complies with ASCE 7-10, NBCC 2005, IBC 2012 & OBC 2012 standards
- Certification: Conforms to UL STD 2703. Certified to ULC/ORD STD C1703
