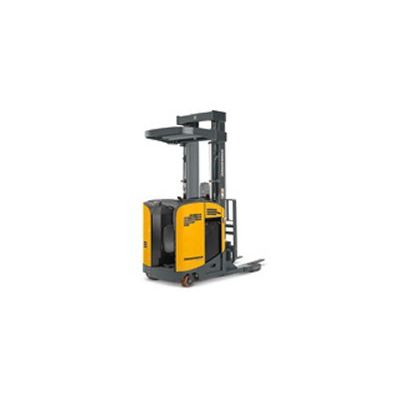

Jungheinrich - Model ETR 230-235 -Reach Trucks

SHARE

Powerful 3-phase AC technology built into the reach truck`s drive, lift and steering motors. State-of-the-art, multi-functional control handle allows operator to work three functions simultaneously. Rugged mast with excellent visibility and hydraulic cushioning for efficient load handling. Spacious operator compartment on the reach truck offers a combination of comfort, flexibility and function. Operator display offers information you need to know in an easy-to-read format.

Most popular related searches
battery state
electric power
electrical power
AC drive
carbonization
High visibility, heavy- duty forklift mast
Jungheinrich masts provide maximum space utilization and visibility to high lift heights.
  • The sturdy mast and narrow, angled overhead guard promote good visibility to the load even in high stacking applications.
  • Hydraulic mast and pantograph cushioning in reach/retract and mast staging functions means loads are handled smoothly.
  • Shim-adjustable canted mast rollers.
  • Heavy, interlocking mast rails.
  • Optional integral sideshifter helps improve capacity retention and maneuverability.
  • Fork heights up to 270 inches.

Spacious and ergonomic operator compartment
The reach truck`s spacious operator compartment combines comfort and functionality to improve operator efficiency.
  • Location of operator controls allows for a flexible side stance position within the forklift compartment.
  • Low-effort electric power steering for precise control with minimal effort.
  • Display with multiple hour meters, travel speed, travel direction, load weight display, fault code read-out and battery state-of- charge gauge with lift monitoring.
  • Intuitive multifunction control handle offers simultaneous control of drive, lift, lower and auxiliary hydraulic functions.
  • Anti-fatigue floor mat and generous padding for knees, hips, back and armrest.
  • Additional storage space provides extra storage for operator’s equipment.
Multifunction control handle
The reach truck`s intuitive, multifunction control handle is centrally positioned for easy access to truck functions.
  • Maximum efficiency through simultaneous operation of travel, lift and auxiliary function.
  • Rounded palm rest helps reduce operator fatigue over long shifts when operating the forklift.

Customized programming
Performance profiling allows you to customize the reach truck`s drive and hydraulic settings based on the application, individual operator experience level and personal preferences. All display-based programming, performance requests and information queries can be performed with easily accessible buttons.

Operator display
The reach truck`s easy-to-read control panel displays the information the operator needs to perform daily tasks.
  • Forklift travel speed.
  • Travel direction.
  • Battery state-of-charge.
  • Load weight display.
  • Text messaging of truck status and limiting conditions.
  • Informational and warning icons.
  • Language options.
  • Optional features such as shelf height selector and tilt position assist are also available to assist the operator work more efficiently.

Powerful 3-phase AC technology
Designed with 3-phase AC technology for drive, lift and steering, the ETR series of reach trucks offers several advantages over traditional direct current motors.
  • Rapid acceleration and precise speed control.
  • Smooth directional changes.
  • Greater operational availability due to maintenance-free motors without carbon brushes.
  • Longer forklift operating times due to energy reclamation during braking.
