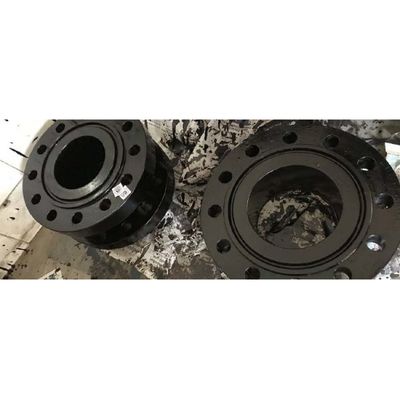

REGAL - Model ASTM A105 -Carbon Steel Flanges

Carbon steel A105 flanges needs temperature such as 500 degree to 550 degree. The flange ace type required is flat face, raised face, ring type. This includes low percentage of carbon, manganese, and silicon contains steel similar to AISI 1330. ASTM A105 Forged Flanges are manufactured by using the dimensions and specification required for this product. These are used in quality industrial sectors and the following process takes for manufacturing this product such as heating, forming, cooling and many such steps. It is the metal disc installed at back of tube, valve or any other object. ASTM A105 Slip on Flange price is available on our regal sales corporation webpage. This is high in demand in the market and is thus manufactured by most of the steel companies. ASTM A105 Blind Flange is used to seal the end of the piping system or pressure vessel openings to prevent flow. Thus, this is the one which is manufactured by regal sales corp. as this is the well known and reputed steel firm in Mumbai.

• Size Chart : 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
• Standards : API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051,
• JISB2220, BS1560-3.1, EN1092
• Pressure Rating ANSI : 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
• Pressure Calculation in DIN : 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
• JIS : 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• UNI : 6Bar 10Bar 16Bar 25Bar 40Bar
• EN : 6Bar 10Bar 16Bar 25Bar 40Bar
• Coating : Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent
• Most common types : Forged / Threaded / Screwed / Plate
• Test Certificates : EN 10204/3.1B
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
• Production technique :
• Forged, Heat treated and machined
• Connect Type/ Flange Face Type : Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
• Special design :
• As per your drawing
• AS, ANSI, BS, DIN and JIS
• 15 NB (1/2″) to 200 NB (8″)
• Equal and Reducing Configurations
• Test : Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector
• Equipment : Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc
• Origin : Indian / West Europe / Japan / USA / Korean
• Manufacturer of :
• ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange,
• GOST Flange, PSI Flange
• B.S: BS4504 , BS3293, BS1560, BS10
• German (DIN)
• AS 2129: Table D; Table E; Table H
• ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
• ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
• American standard (ANSI)
• British standard (BS)
• ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
• The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
• Uses & application :
• Nuclear power (mostly seamless).
• Bitumen upgraders.
• Petrochemicals and acids.
• Heavy oil refineries.
