Semco Infratech Pvt Ltd

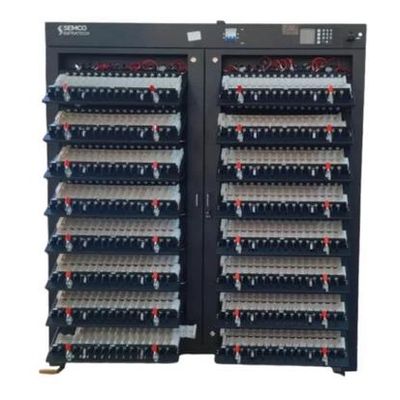

Semco Infratech - Model 5V 10A 512CH - Regenerative Cell Grading Machine
The constant voltage and constant current charging are safe and smooth, and the voltage and current sampling output of the device is controlled through the four-wire system connection for soft start, so as to make a safe and smooth transition in the constant voltage and constant current charging process to avoid the occurrence of peak damage to the battery.
Most popular related searches
- Each CH can perform constant current and constant voltage charge and constant current discharge test on the 512 Cells that meet the voltage range.
- Using the constant current-constant voltage power supply of the invention patent, there is no impact from constant current to constant voltage switching, which is especially suitable for the requirements of lithium-ion battery charging.
- Equipment and computer interface: the Ethernet interface between the equipment and computer can ensure the stability and real-time of remote data acquisition, and the operation of the equipment can be activated by the office network and remote monitoring workshop in real time.
- Each battery fully has its own constant current and constant voltage source, and its own loop does not affect each other.
- Also Available for: 5V 10A 256CH
- Item Name: Semco SI ES 5V 6A 512CH
- Channel numbers: 512 CH
- Working mode for channel: Charging: constant-current (CC), constant-voltage (CV), CC-CV No impact voltage and current during CC-CV transition)
- Discharging: constant-current (CD), constant-power constant- Voltage.
