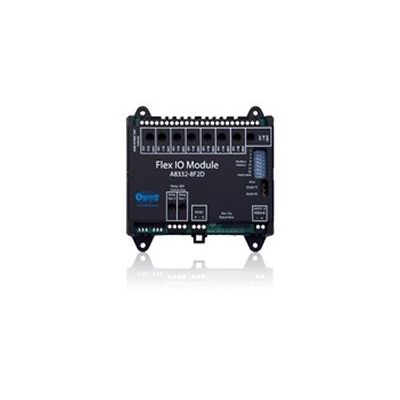

Flex - Model A8332-8F2D - Remote I/O Module
The Flex I/O module is a universal remote I/O module with 8 user selectable inputs for pulse, analog and resistive output devices. Integrate with any Programmable Logic Controller or distributed Modbus network through RS-485.
Flex I/O A8332-8F2D
Our Flex I/O is a cost-effective way to collect data from meters or sensors and bring that information into a Modbus network or energy monitoring system. As a stand-alone or bundled package, the Obvius Flex I/O can be incorporated with data acquisition and wireless metering devices to provide a cost-effective energy monitoring solution.
Compatibility
The Flex I/O is compatible with virtually any Modbus master, allowing customers the flexibility to use it in existing Modbus networks. Use with the Obvius AcquiSuite and take advantage of plug-and-play communication or use with the Obvius ModHopper for wireless communication. Ask about the Obvius Commissioning Console, a free commissioning software.
Applications
- Converting analog, resistive and pulse inputs to Modbus
- Utility submetering (electric, gas, water, etc.)
- Cost Allocation
- Measurement and Verification
- Benchmark building energy usage
- Relay outputs for demand control
- Environmental monitoring
- Track energy use and peak demand for Demand Response
- DC current monitoring for Renewable Energy
- Designed specifically for metering applications
- Easily add meters and sensor to a Modbus network
- 8x user selectable inputs
- 2x output relays
- 2x pulse replicator
- Non-volatile memory
- Industrial temperature range -30 to 70C
- LEDs for visual verification / status
- DIN or wall mount for easy installation
- Field upgradable firmware
