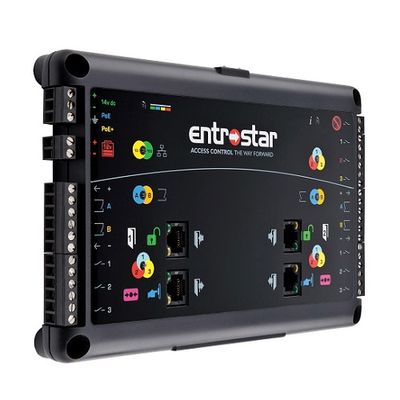

Remsdaq - Model EntroStar -Door Access Control Panels
EntroStar is a state of the art PoE/PoE+ access control panel that supports reader in/reader out configuration on 2 doors. The access control panel is designed to work with EntroWatch management software or any third-party BACnet compliant system. The EntroStar panel is a self-contained package that can be wall mounted or built-into a metal enclosure. Remsdaq can supply an optional power supply unit and battery for mains power failure back-up.
- Native PoE/PoE+ powered with optional power supply and battery backup
- Advanced diagnostic LEDs
- 2 door 4 reader (2 doors with IN/OUT readers)
- Compact, secure and easy to fit unit
- BACnet open protocol
- RJ45 reader connection
- Optional metal enclosure and PSU
- True Plug and Play operation
- Battery backup
- EntroPad (Wiegand) reader compatible with OSDP option
- Default settings and auto-discovery
- Two auxiliary relays for user definable applications
- Alarm notifications
- Building Management System (BMS) Integration
- Energy saving
- TCP/IP Network configurable using EntroWatch V3.0 software
- Peer-to-Peer networking e.g. global anti-passback and relay operation
EntroStar is our entry-level controller and is quick and easy to install. The controller is ideal for small to medium sized sites and provides access control for 2-doors per unit. Up to 100 EntroStar controllers can be networked to provide control of up to 200 doors using EntroWatch software. EntroStar features peer-to-peer communications for added system integrity if communication is lost for any period with the EntroWatch server. Please see the EntroWatch YouTube channel for a wide selection of EntroWatch software installation and set-up videos.
- Processor: 208 MHz Arm 9 Processor
- Memory: 256 Mb NAND Flash & 128 Mb DDRAM
- Power Requirement: PoE/PoE+ (IEEE 802.3at/IEEE 802.3af), PoE/PoE+ power consumption (EntroStar only) 3.5W, DC: 14V (+10%/–25%) 50W (max) – note: DC input incorporates reverse polarity protection
- Card Reader Ports: 4 wiegand ports via RJ45 sockets with optional RJ45/screw terminal adapter (EN-RA-0001P)
- Supported Reader Formats: configurable industry standard Wiegand output format facility
- Card Capacity and Event Buffer: up to 100,000 cards and 100,000 events as standard
- Digital Inputs: 9 off monitored (4 state supervised) and 1 optical tamper
- Output Relays: 4 N/O contacts rated 2A @ 30V DC
- Host Communications: 10/100 Ethernet auto-switching
- Dimensions (mm): 215(W)x135(H)x27(D) Controller only and 426(W)x300(H)x83(D) Metal Cabinet
- Supported Configurations: up to 2 doors reader IN/reader OUT per control panel and up to 2 bidirectional turnstiles per control panel
- Supported Protocol: native BACnet (ANSI ASHRAE 135-2010)
- Power Available for External Devices: PoE: 7.2W (min) 9.3W (max) total, PoE+: 17.7W (min) 24.9W (max) total, DC: 45W (max) total – note: Each Output A/Output B pair is limited to 800mA (PoE/PoE+) and 1.5A (DC). Each reader port is limited to 500mA @ 25°C de-rated to 300mA @ 70°C
- Environmental Specification: Temperature Range: -40°C to + 70°C
- Humidity: up to 93% at +40°C non-condensing
- Housing: UL94 V-0
- Declaration of Compliance: EntroStar is certified to EN55024, EN55022 and EN60950-1 in accordance with the ‘2006/95/EC Low Voltage’ and ‘2004/108/EEC EMC’ directives and has been designed to be compliant with UL294 and UL1076
