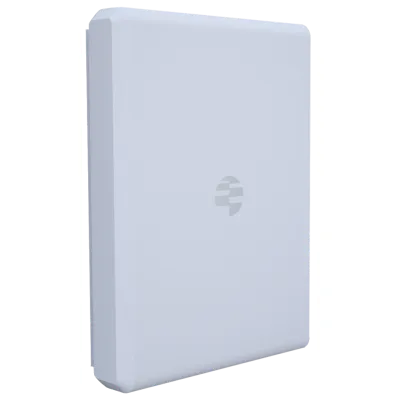

Residential Energy Storage
System setup and control is provided by a simple App that enables the user to operate the system in several different modes: GENERAL MODE - PV supplies load as a priority, then charges the battery and finally feeds surplus to the grid. If there is insufficient PV, the batteries supply the load. Battery and grid supply load together if demand exceeds battery power.
ENERGY STORAGE MODE - PV and grid supply the load and charge battery together. Battery SoC is maintained at 100%. If there is insufficient PV the grid supplies the load and charges the battery.
PEAK & VALLEY MODE Four sub modes can be configured based on Time of day. These can define the priority of the source that supplies the load. The stored battery energy or excess PV can be pushed to the grid when demand from the load is low.
MICRO GRID - PV supplies load as a priority, then charges the battery with excess energy. When PV is no longer available the battery supplies the load.
System range
Storage capacity: 15kWh - 30 kWh:
Rated AC Voltage: 230Vac/400Vac - 220Vac/380Vac:
Rated Output Power: 10kW:
Output Frequency: 50/60Hz:
Solar PV MPPT Voltage Range: 200-880Vdc:
Cycle Life: 7 - 10 Years (80% DoD):
System Temperature Range: 10 to 30oC:
Battery Weight: ~300kg:
Battery Dimensions: ~2000 x 1200 x 300mm (HxWxD):
Inverter Weight: ~40kg:
Inverter Dimensions: 550 x 550 x 190mm (HxWxD)
