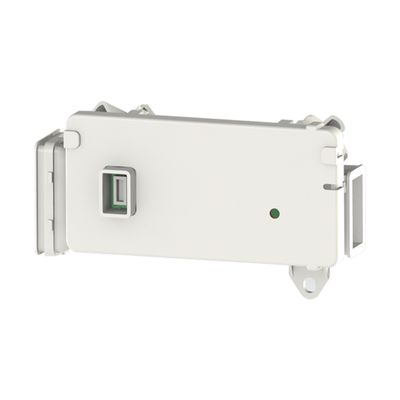

Cubic - Model USM-MN/MP-G1.6/G2.5/G4 & USM-MN/MP-L-G1.6/G2.5/G4 -Residential Ultrasonic Gas Meter Module
Based on ultrasonic gas flow sensor technology, USM-MN/MP-G1.6/G2.5/G4 & USM-MN/MP-L-G1.6/G2.5/G4 adopts patented V shape gas flow channel, the effective distance between two transducers are long, which facilitates the measurement accuracy, it's also anti-contamination that guarantees high stability. USM-MN/MP-G1.6/G2.5/G4 & USM-MN/MP-L-G1.6/G2.5/G4 is used for assembling residential natural gas meters.Most popular related searches
- Stable flow field distribution
- High sensitivity and accuracy with intelligent software algorithm for air, different natural gases, natural gas+up to 23%H2, and LPG
- Low pressure loss due to absence of obstructing objects within flow path
- Low power consumption
- Comes with integrated temperature compensation as standard, with optional pressure compensation available
- UART/TTL interface with direct output for connection
- Small footprint which permit compact designs
- Compliant to OIML R137 and EN14236 class 1.5
- Measurement Range: USM-MN-G1.6: 0.016~2.5 m³/h [0.57~ 88.29 ft³/h], USM-MN-G2.5: 0.025~4 m³/h [0.88~ 141.26 ft³/h], USM-MN-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h]; USM-MP-G1.6: 0.016~2.5 m³/h [0.57~ 88.29 ft³/h], USM-MP-G2.5: 0.025~4 m³/h [0.88~ 141.26 ft³/h], USM-MP-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h]; USM-MN-L-G1.6: 0.016~2.5 m³/h [0.57~ 88.29 ft³/h], USM-MN-L-G2.5: 0.025~4 m³/h [0.88~ 141.26 ft³/h], USM-MN-L-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h]; USM-MP-L-G1.6: 0.016~2.5 m³/h [0.57~ 88.29 ft³/h], USM-MP-L-G2.5: 0.025~4 m³/h [0.88~ 141.26 ft³/h], USM-MP-L-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h]
- Accuracy: Class 1.5
- Error (-25℃~+55℃): Qmin≤Q<0.1Qmax:±3%, 0.1Qmax≤Q≤Qmax:±1.5%
- Additional permissible error outside the temperature range from -25℃ to+55℃ for every 10℃ deviation from the range limit: USM-MN/MP-Series: -; USM-MN/MP-L-Series: ±4%
- Gas Medium: Natural Gas/Natural Gas+23%H2; LPG; Natural Gas/Natural Gas+23%H2; LPG
- Power Supply: 3~3.6VDC
- Dimension (mm): 108.2*40.1*52.9
- Weight (g): 70
- Temperature Measurement: YES
- Working Pressure: 0~20kPa/0~2.90psi
- Pressure Loss: 200pa/0.029psi or less (at Qmax)
- Working Temperature: USM-MN/MP-Series: -25℃~+55℃/-13℉~+131℉; USM-MN/MP-Series: -25℃~+55℃/-13℉~+131℉; USM-MN/MP-L-Series: -40℃~+60℃/-40℉~+140℉; USM-MN/MP-L-Series: -40℃~+60℃/-40℉~+140℉
- Storage Temperature: USM-MN/MP-Series: -25℃~+70℃/-13℉~+158℉; USM-MN/MP-Series: -25℃~+70℃/-13℉~+158℉; USM-MN/MP-L-Series: -40℃~+70℃/-40℉~+158℉; USM-MN/MP-L-Series: -40℃~+70℃/-40℉~+158℉
- Ex-proof Grade: ExibIIBT4 Gb
