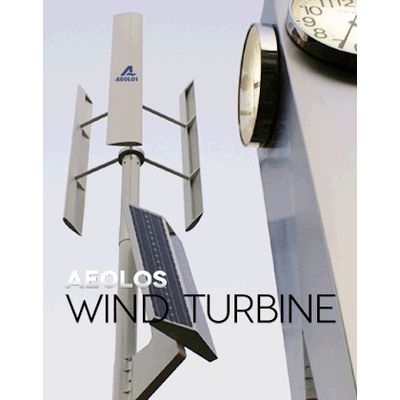

Aeolos - Model V 300W -Residential Vertical Axis Wind Turbine
Aeolos residential vertical axis wind turbine is a low start wind speed, quiet, safe and reliable vertical wind turbine. We use outer rotor three-phase generator with a 1.5m/s start wind speed. Aeolos 300W vertical axis wind turbine was widely applied for home, street lighting, school and other low noise area. The blades were made by aluminum alloy with a special aerodynamic design. This design will limit the max rotating speed to 300rpm even the wind speed is 30m/s or 40m/s. It is more safety and reliable than traditional vertical axis wind turbine.
Most popular related searches
vertical axis wind turbine
vertical axis wind
vertical wind turbine
wind turbine
permanent magnet generator
domestic wind turbine
street light
domestic wind
wind turbine power
wind turbine rotor
- Rated Power: 300 w
- Maximum Output Power: 400 w
- Output Voltage: 24 V
- Rotor Height: 1.6 m (5.2 ft)
- Rotor Diameter: 1.2 m (3.9 ft)
- Start-up Wind Speed: 1.5 m/s (3.4 mph)
- Rated Wind Speed: 10 m/s (22.3 mph)
- Survival Wind Speed: 50 m/s (111.5 mph)
- Generator: Permanent Magnetic Generator
- Generator Efficiency: >0.96
- Turbine Weight: 10 kg (22 lbs)
- Noise: <45dB(A)
- Temperature Range: -20°C to +50°C
- Design Lifetime: 20 Years
- Warranty: Standard 5 Years
