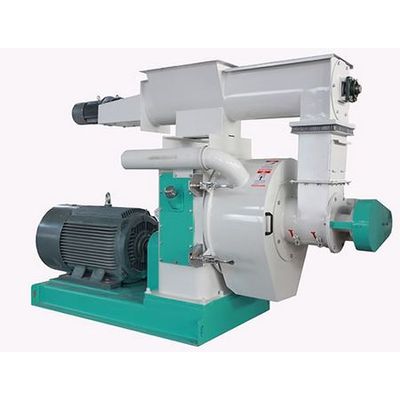

Fusmar - Model MKLH -Ring Die Wood Pellet Machine
MKLH ring die biomass pellet machine is mainly for compressing the pulverized wood chips,grass into the pellets.MKLH ring die biomass pellet machine is mainly for compressing the pulverized wood chips, grass into the pellets. It applies with a forced feeder, reinforced transmission parts, special ring mold, pressure roller, and hoop. This machine equips with the 8mm and 10mm die because the test shows that these 2 sizes pellets are the most suitable for burning. We can also equip with the other size ring die.
It feeds the material with frequency conversion motor, it’s equipped with the overload protection device, off-machine discharge mechanism, and a lubrication oil pump lubrication system.
Feeding, granulation, transmission, lubrication. The process requires the raw material moisture is less than 17%. The material enters the feeding screw conveyor through the hopper. In order to obtain suitable material flow, it will adjust the motor speed. Then the material will pass through the forced feeding device and enter the forced chamber for granulation.
The name of every part:1. Base 2, Main Gear Box 3.Door Cover 4. Forced Feeder 5.Coupler 6. Main Motor 7.Oil injector, separator. 8. Feeding Screw Conveyor 9. Speed Reducer 10. Speed Motor
