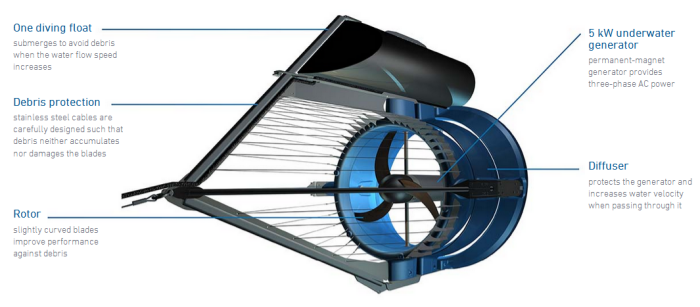

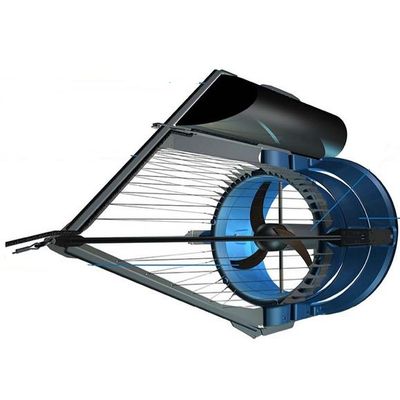

Smart Monofloat - River Hydro Turbine

This turbine is ready to overcome:

• variable water depth and velocity
• floating debris of various materials and sizes

Anchorage dependent on:

• Hydrological characteristics (e.g. riverbed type: rock, sand, etc.)
• Ship traffic/kayak/tourism
• Amount/type of flotsam/debris
• Width and depth variation of river

Requirements:

• Min. river depth: 2.0 m
• Min. river width: 2.0 m
• Injection point: max. 500 meters distance from turbine

• Output 250 – 5000 W
• Dimensions Length: 3130 mm
• Width: 1600 mm
• Height: 2010 mm
• Rotational speed 90 – 230 rpm
• Weight 380 kg
• Number of rotor blades 3
• Rotor ø 1000 mm

Specifications

• The permanent-magnet underwater generator provides AC power
• Dives when water level rises
• Especially suitable for waters with heavy debris
• Expandable system with multiple turbines
• Available as an off-grid solution, grid-connected and hybrid version
• Scope of delivery and specifications can be adapted to special projects
• Max. power output at 2.8 m/s
