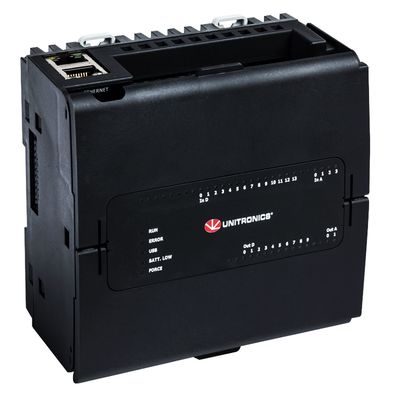

UniStream - Model PLC - Robust PLC Controller with Virtual HMI

SHARE

Powerful multi-function PLC controller that provides users with advanced communication support, variety of built-in I/O configurations, and Virtual HMI. Virtual HMI- the PLC stores and runs the program logic as well as the HMI user application within the PLC itself. This brings a unique advantage: you can view and operate your machine, or access your process via any mobile phone,  PC,  or remote display device. Main features:  Ethernet/IP,  MQTT,  SNMP,  SQL,  Web Server,  FTP,  SNMP,  and more. Available in Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!

Most popular related searches
lithium battery
battery lifetime
battery backup

PLC

  • Auto-tune PID, up to 64 independent loops2
  • Recipes & data logging via data tables & sampling1
  • MicroSD card – log, backup, clone & more1
  • Function Blocks & Structs

1. Pro (B10) and Standard (B5) only
2. Basic (B3) supports up to 2 independent PID loops

Virtual HMI

  • Full HMI functionality
  • Support different resolution type
  • Includes Drag & Drop graphic library
  • Multi-language display
  • Built-in Alarm Screens
  • PDF viewer1
  • Multi-level password protection –easy and fast

1. Pro (B10) and Standard (B5) only

Communication

Built-in ports:

  • 2 Ethernet TCP/IP
  • 1 USB host
  • 1 Mini USB for programming1

Add-on ports2:

  • 1 CANbus
  • 1 RS485
  • 1 RS232
  • 1 EtherCAT Master

Protocols:

  • MQTT Client
  • EtherNet/IP
  • EtherCAT
  • MODBUS TCP
  • CANopen, CANlayer2, UniCAN
  • SNMP
  • BACnet, KNX and M-Bus via gateway
  • Message Composer for third party protocols

General Features:

  • SQL Client3
  • Web Server3
  • E-mail & SMS
  • Remote access via VNC
  • FTP server & client1
  • GPRS

1. Pro (B10) and Standard (B5) only
2. Up to two serial modules for B10/B5 and one for B3
3. Pro (B10) only

I/O

  1. Pro (B10) and Standard (B5) only
I/O Options
Number of I/Os (Built-in, local and remote) Up to 2,048 I/O points
Built-in I/O or Uni-COM Modules According to model and add-on model (see table below)
Local Uni-I/O™ Modules To add local I/Os, use UAG I/O Expansion Adapters. These adapters provide the connection point for standard UniStream Uni-I/O™ modules
Remote I/O Expansion Use UniStream Ethernet-based Remote I/O adapters to add I/Os via Ethernet (See I/O Expansion Modules table)
Bit Operation 0.13 µs
Ladder Memory 1 MB
External Memory MicroSD or MicroSDHC card
Size: up to 32GB
Data Speed: up to 200Mbps
Power Supply 24VDC (B1 support 12V/24VDC)
Backup Battery Model: 3V CR2032 Lithium battery (5)

Battery lifetime: 4 years typical, at 25°C
Battery Low detection and indication (via BATT. LOW indicator and via System
Tag).
Communication
Ports 2 Ethernet •1 USB host • 1 mini USB device for programming1
Protocols • MQTT Client • EtherNet/IP • Modbus TCP • CANopen, CANlayer2, UniCAN • SNMP
• BACnet, KNX and M-Bus via gateway
Viewing Area
Height x Width (mm)		 Height x Width (mm) 108 x 64.8
Environment
Protection IP20, NEMA1
Operating Temperature -20°C to 55°C (-4°F to 131°F)
