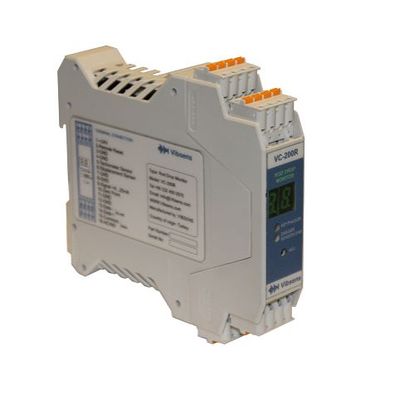

Vibsens - Model VC200R - Rod Drop Monitor and Transmitter Module

SHARE
This module measures the piston rod drop for reciprocating machines and meets the requirements of API-670 providing all the features of VC210A with relay outputs as trip, and an on-board display to show the instantaneous value of rod drop values (either probe distance to rod or actual rider point). Besides that, VC200R has 4-20mA output signal which may be transmitted to PLC/DCS or any other standard recorder. Sensor error, Danger/ Alarm status , alarm delay, bypass, latching or non-latching relays, energise and non-energised relays are also provided. also Three measurement modes which consist from reference point, average mode and maximum drop point of piston rod. Just like other transmitters terminal for remote reset / Modbus RTU (RS-485) protocol communication is supported.
Most popular related searches
latching magnetic relay
electric power
electrical power
power sensor

Input type : 200mv/mils Displacement Sensor

Displacement Sensor : (Other sensitivities available)

Measurement : Average, Max.Drop Point Keyphasor® Triggered

Measurement Range : 0-2mm

Keyphasor® Input : 200mv/mils Displacement Sensor or photo Electric Sensor

Power Input : +24 V DC (50 mA)

Output : 4-20 mA= 0-2 mm

Adjustment potentiometer

(in front of panel) : Adjustment of zero point

Relays : 1 SPDT, 1A Form C 24Vdc

Status LED : 3 LEDs RPM of Machine, Danger Relay, Sensor Error

Case Material : Plastic

Mounting : DIN Rail TS35 (Top Hat)

Dimensions : 134 x 99 x 22.5 mm (H x D x W) including BNC

Connections : Push in Clamp

Conductor Size : 0.5 to 4.0 mm

Weight : 110 g (nom)

Displacement proximity probe

Keyphasor® signal

Rod Drop value 4-20mA Outputs

Measurement in 3 Mode Keyphasor® triggered Average Mode

Maximum drop point of rod

sensor OK status LED

DIN Rail Mounting

Push-in type connectors

Energize and De-energize relay selection

Delay shutdown function

Modbus RTU support

Installation Up/Downward position

Rotational speed display in RPM
