SolarStrap - Roof Attachment System

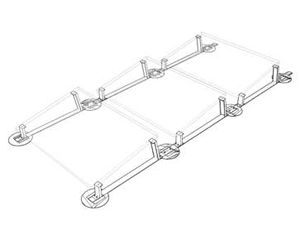

The SolarStrap? roof attachment system offers a revolutionary advancement in mounting technology for PV systems on flat roofs. The SolarStrap? requires neither penetrations nor ballasts, while being both easy to install and attractively priced. A proprietary design employs heat sealing technology to secure the framework to the roof and allows for rapid installation with minimal tools. The system hardware is also available coupled with design and installation services.
Most popular related searches
- Minimal or NO Penetrations
- Fastest Installation with One Tool and Few Components
- Lightest Overall Weight
- Integrated Bonding up to 360 Modules per Lug
- 0 – 15 Degree tilt Angles Available
- 0 – 15 Degree Roof Pitch Accommodated
- Compatible with Most Modules
- Compatible with Most Flat Roof Surfaces – TPO, PVC, EPDM, and Asphalt
- Landscape Orientation Standard
- Marine Grade Option Available
- Increases Roof Life Span
- Engineering, Layout, and Installation Services Available*
- Fast and Easy Permitting
- Lightweight Design Reduces Loading
- Designed and Manufactures in Los Angeles, California, USA
*Engineering may require additional charges.
- Material: Aluminium, Stainless Steel, Polymer
- Array Weight (with panels): 1.6 – 2.0 lbs./s.f.
- Wind Loading: 150 MPH
- Seismic: All classification
- Ground Plane: Up to 360 modules
- Warranty: 20 year material defects
