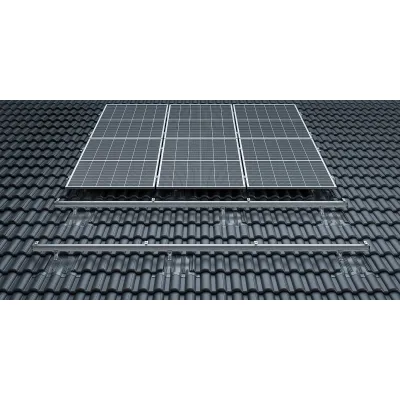

Aerocompact Compactpitch - Model XM-F -Roof Hook System
The COMPACTPITCH XM-F roof hook system by Aerocompact is an innovative solution designed for mounting solar panels on sloped roofs with various types of roof tiles. This universal system features flexible coverings that adapt to different tile shapes, ensuring that hooks can always be centrally mounted on roof rafters for optimal force transfer. This design is particularly advantageous in regions with high snow loads, facilitating easier installation. For areas with lower snow loads, the number of required roof hooks can be significantly reduced, particularly when combined with the X60 rail, thereby saving time and costs. The system's Pierce-Labyrinth seal allows flexible positioning of roof hooks on the cover plate, ensuring reliable load-bearing capacity while reducing the number of fixation points needed. The XM-F system supports both portrait and landscape PV module orientations using the appropriate connectors and clamps, providing versatile and efficient mounting options for solar installations.The COMPACTPITCH XM-F REPTILE system offers an innovative solution for a wide range of different roof tiles on pitched roofs, with a flexible cover that can be adapted to the shape of the tile. The roof hook can therefore always be mounted centrally on the rafter, regardless of the tile grid, which guarantees optimal force introduction.
The XM-F system is a new type of roof hook construction that is particularly strong due to the optimized introduction of force into the rafters. This makes installation in areas with high snow loads much easier. In zones with lower snow loads, the number of roof hooks can be significantly reduced by combining it with the X60 rail, thus saving installation time and costs.
AEROCOMPACT`s Pierce labyrinth seal enables the XM-F roof hook to be positioned flexibly on the XM-FC cover plate. The roof hook can therefore always be mounted centrally on the rafters, regardless of the tile position, thus guaranteeing optimal force introduction. This results in an enormous load-bearing capacity of the roof hook and, depending on the area of application and system combination, leads to a significant reduction in the number of fastening points.
- Cost-effective due to saving on roof hooks
- Pre-assembled assembly
- Always mounted on rafters, thus highest load-bearing capacity possible
- Up to 40 percent time savings
- Highest load-bearing capacity
- Adaptable to almost any brick shape
- Flexible in application
