Cummins - Roof Mount CNG Fuel System

Cummins - Roof Mount CNG Fuel System

FromCummins Clean Fuel Technologies

SHARE

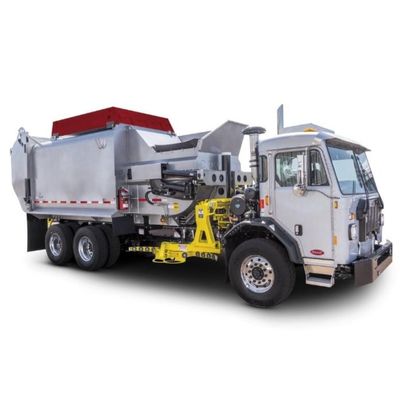

Applications for front end loader, auto side loader and rear loader bodies; Equipped with GreenLync® 3.0 technology providing an in-dash driver message center, Cummins engine ECM integration and telematics support; High-strength steel substructure, aircraft aluminum upper structure; Fuel lines are color-coded yellow and PRD live lines are red for safety; Type III and Type IV cylinders; Rear cover opening keeps system closed and allows easy access to tank valves; Belly pan shield seals system from debris and improves thermal performance; Body manufacturers include AMREP, Bridgeport, G&H, Heil, Labrie, McNeilus and New Way.

Most popular related searches

CNG fuel system

60 DGE SYSTEM

# and Size of Cylinders: (4) 13" dia
Water Volume: 797 L
Height/Width/Length: 14.75/80.25/129.75"
Tank Empty/Full Weight: 632/1,015 lbs.
System Empty/Full Weight: 2,050/2,440 lbs.

60 DGE SYSTEM

# and Size of Cylinders: (4) 16" dia
Water Volume: 797 L
Height/Width/Length: 16.9/72.8/101.75"
Tank Empty/Full Weight: 656/1,039 lbs.
System Empty/Full Weight: 1,450/1,830 lbs.

75 DGE SYSTEM

# and Size of Cylinders: (4) 16" dia
Water Volume: 996 L
Height/Width/Length: 16.9/72.8/118.4"
Tank Empty/Full Weight: 744/1,203 lbs.
System Empty/Full Weight: 1,700/2,150 lbs.

80 DGE SYSTEM

# and Size of Cylinders: (2) 22" dia, (1) 16" dia
Water Volume: 1,062 L
Height/Width/Length: 24/84.1/105.5"
Tank Empty/Full Weight: 612/1,103 lbs.
System Empty/Full Weight: 1,600/2,100 lbs.

95 DGE SYSTEM

# and Size of Cylinders: (2) 22" dia, (2) 16" dia
Water Volume: 1,262 L
Height/Width/Length: 24/84.1/105.5"
Tank Empty/Full Weight: 776/1,363 lbs.
System Empty/Full Weight: 1,775/2,350 lbs.

95 DGE SYSTEM

# and Size of Cylinders: (4) 16" dia
Water Volume: 1,262 L
Height/Width/Length: 17.5/72.1/138.6"
Tank Empty/Full Weight: 888/1,485 lbs.
System Empty/Full Weight: 2,150/2,750 lbs.
