Dome Solar - Roof-Solar Tilted Bitumen Mounting System
The Roof-Solar Tilted Bitumen is a system designed for mounting photovoltaic panels on flat roofs with bitumen waterproofing. This innovative system avoids the need for ballasting or membrane perforation by employing thermally welded, pre-assembled rails with bitumen retaining strips. This ensures an even load distribution, minimizing the risk of membrane damage. Primarily constructed of aluminum, it provides a lightweight, strong, and corrosion-resistant solution. Certified by a New Technology Survey (ETN), this mounting system withstands climatic loads, enhances watertightness, and resists corrosion. Added conveniences include the ability to adjust panel tilt to 10 degrees, simplifying installation. The product complies with fire resistance standards and is versatile for applications on commercial structures.
A certified mounting
Roof-Solar Tilted Bitumen photovoltaic mounting is a resistant solution that has been rigorously tested to be certified by a New Technology Survey (Enquête de Technique Nouvelle – ETN) by Alpes Contrôles: resistance to climatic loads, watertightness, condensation, corrosion resistance. All the results of these tests show that this mounting system is one of the safest on the market.
A minimum load

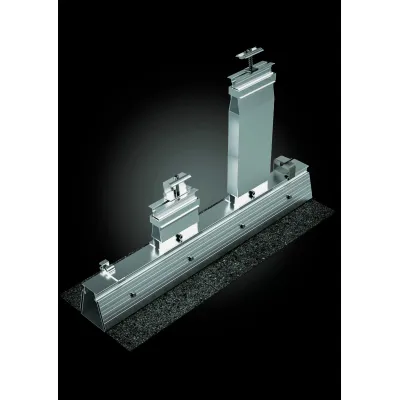

Roof-Solar Tilted Bitumen allows solar panels to be installed on the roof in such a way that the added load on the building structure is as low as possible. The pre-assembled rails with bitumen retaining strips are thermally welded to the bitumen membrane. Ballasting is therefore not required.
Tilting in the blink of an eye
The tilting structure can be assembled prior to mounting on the roof. Light and easy to handle, it can be attached to the rail in just a few seconds and gives you the option to tilt your solar panels at 10°.
A premium metal
The Roof-Solar Tilting Bitumen photovoltaic process uses mostly aluminium. This metal has many advantages including being light, strong, recyclable and highly resistant to corrosion.
- USE : Enclosed building, new roof or total or partial renovation
- TYPE OF ROOF : Concrete, ribbed steel sheets, wood. Insulation of compressibility class C. Bitumen waterproofing membrane.
- MODULE POSITION : Portrait
- MATERIALS : Aluminium, stainless steel and bitumen
- SYSTEM WEIGHT : 5.50 kg/m²
- SYSTEM COMPONENTS : 0.6 aluminium rail, retaining strip, tilt support, universal and external clamp with aluminium/stainless steel finish, Module Grounding Connector (MGC) and cable guide
