  5. KIPI - Model 5 – 20 kW - Rotary Burner

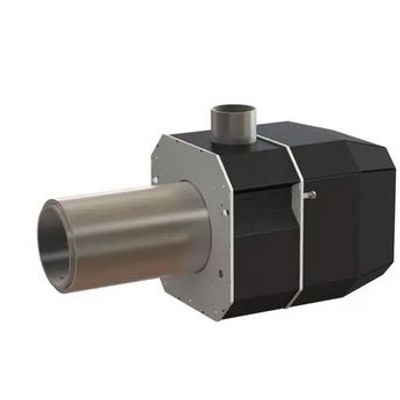

KIPI - Model 5 – 20 kW -Rotary Burner

SHARE
An innovative burner with a rotating combustion chamber that has revolutionized the energy biomass market. Rotating chamber stand out: Minimum operation, Self-cleaning, Effective combustion. Available powers form 10 to 300 kW.
Most popular related searches
combustion chamber
boiler temperature
pellet burner
burner
central heating
heat pump
power heat pump
fuel pellet
clean combustion
burner control
  • ROTARY pellet burner
  • PLUM EcoMAX850 controller
  • feeder with a viewfinder
  • spiro pipe
  • angular output reduction
  • emergency mechanical sensor of the boiler temperature
  • boiler temperature sensor
  • DHW temperature sensor
  • mounting flange (fixing the burner to the boiler)
  • pellet hopper
  • additional accessories and modules for the controller
  • Power / Type 5-20 kW
  • The diameter of the hearth (SP) 93,6 mm
  • Combustion chamber Diameter (SZ) 114,3 mm
  • Mounting diamete (SM) 120 mm
  • Combustion chamber length (A) 183 mm
  • Power 230 VAC, 50 Hz (6A)
  • Average power consumption 24 W
  • Igniter power 150 W
  • Fuel Type Pellet 6-8mm, pestka, granulat we frakcji 5-10 mm
  • Power regulation YES (power modulation in the full range of burner power)
  • Central heating pump operation YES
  • DHW pump operation YES
  • Controlled by a room regulator YES
  • Controlled by a weather compensator YES (optional)
  • Pellet feeder YES Ø 60 x 1850 mm
  • Spiro pipe YES Ø 60 x 750 mm
  • Remote YES PLUM controller
