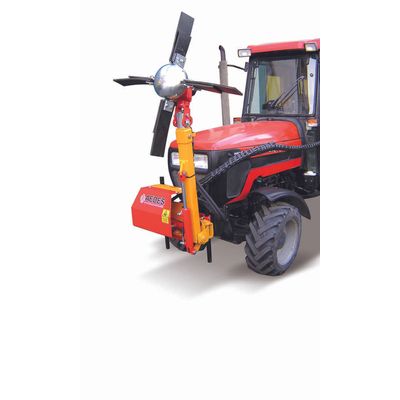

Aedes - Model CNS Series -Rotary Hydraulic Conveyor
The Aedes Model CNS Series Rotary Hydraulic Conveyor is designed for efficient inter-row cleaning in agricultural settings. This unilateral hydraulic conveyor effectively moves pruned branches, leaves, and debris from the row to the center of the carriageway. It features a front assembly on the tractor drawbar or optional three-point linkage structure. The rotor comes with either rubber scrapers (Model G) or a nylon brush (Model N), and includes a self-leveling system with a touch cup and swinging arm. The arms open and close via a hydraulic cylinder, with elevation adjustments also controlled hydraulically. Transmission is powered by a hydraulic motor, with hoses provided up to the fitting/connection plate. Note that connecting hoses from the fitting plate to the tractor`s hydraulic system must be custom-made during installation.
- UNILATERAL hydraulic conveyor for cleaning the inter-row plantings, moving pruned branches, leaves, etc. from the row at the centre of the carriageway
- Front assembly on the drawbar of the tractor (the mounting plate has to be built locally at the moment of the first installation) or on request three-point linkage structure (specify model and category)
- Rotor with rubber scrapers Mod. “G” or nylon brush Mod. “N”
- Rotor self-level system through touch cup and pendulum/swinging arm
- Opening and closing of the arms through a hydraulic cylinder with hoses up to the fitting/ connection plate
- Arm elevation through hydraulic cylinder with hoses up to the fitting/connection plate
- Transmission through hydraulic motor with hoses up to the fitting/connection plate
- WITHOUT connecting hoses from the fitting plate to the hydraulic system of the tractor (these connecting hoses must be made to measure on initial installation)
- Front/rear mount and for tractors with reverse drive (specify at order)
- Safety-protections and “CE” certification
For the operation of this machine, the tractor needs
- TWO double acting hydraulic valves
- ONE single acting hydraulic valve (permanent oil) with free return
