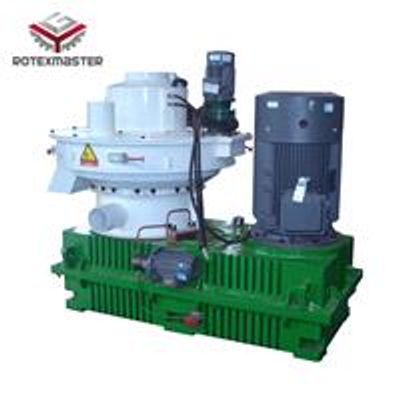

ROTEX MASTER Brand - Model YGKJ 700 Wood Pellet Machine - Vertical Ring Die Wood Pellet Mill Machine/Pellet Press Machine
This is vertical ring die wood pellet machine-YGKJ 700 Wood Pellet Mill Machine/Pellet Press Here is the detail information about Wood Pellet Machine Model:YGKJ 700 Wood Pellet Machine Power:160kw Capacity:2-3 ton per hour Type of Pellet Machine: Vertical Ring Die Wood Pellet Machine Die : Stainless Steel, double layer, Both side can be used Roller: Alloy Steel Working Way:Die Static, Roller rotation Installation way: motor are parallel with the main shaft Raw Material:Rice Husk, wood sawdust, wood chips, agricultural waste, and forestry waste
Vertical Ring Die Wood Pellet Machine/Sawdust Pellet Machine
Wood Pellet Machinery, as named wood pellet machine, wood press machine , is a equipment which is used to press forestry waste, agriclture waste into biomass fuel.
It is widely used in biomass pellet plant.
Raw Material for Wood Pellets Mill/Wood Pellet Machine/Pellet Machine Price
The raw material can be forestry waste ,such as wood branch, wood sahvings, wood chips,wood log and agriculture waste such as sesame rod, wheat straw
rice straw, rich husk, corn stalk, peanut shell, weeds, thatch..
Advantaged of Wood Pellets Mill/Wood Pellet Machine/Pellet Machine Price
Feeding Way
Vertical ring die pellet machine vertical feeding
Pressing Way
The vertical ring die pellet machine is the mold stationary, the roller roll revolution and rotation
Installation
Main shaft and motor are respectively installed vertically. Power flat drive.
The reserved space of reduction gear box is large, then larger reduction gear box can be installed. Therefore, the reduction gearbox with lower failure rate, stable operation, low power, and large output torque.
The temperature of Chamber room
The speed of main shaft in vertical ring die pellet machine is 75 rpm, and the press chamber is open. It is easy to dissipate heat and the temperature is up to 150 degrees. Therefore, it can be used with high temperature resistant 200° high temperature butter and also can long life of various wearing parts.
Cooling Way
Gear box adopts cooling system,avoid higher oil temperature,service life 5 years gurantee,highly lower the production cost.
Main shaft makes use of the gear box gear oil lubrication,lower the main shaft temperature,improve the main shaft span life.
Lubrication Way
Vertical ring die pellet machine adopts the lubrication way with non-stop and uninterrupted lubrication
