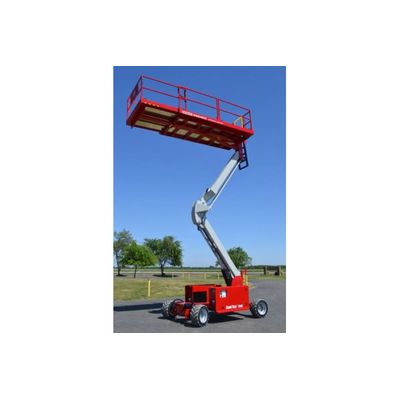

MEC - Model 2684ES Speed Level -Rough Terrain Lifts

SpeedLevel® Design
Unique sigma lift design drives at full height while delivering 14° side to side and 10° fore and aft slope leveling without the need for outriggers

Oscillating Front Axle
Maintains stability while enhancing terrainability on uneven surfaces

Large Deck Workability
Large sheet loading entrances, non-skid metal deck and 4ft extension deck deliver performance on the most demanding jobsites

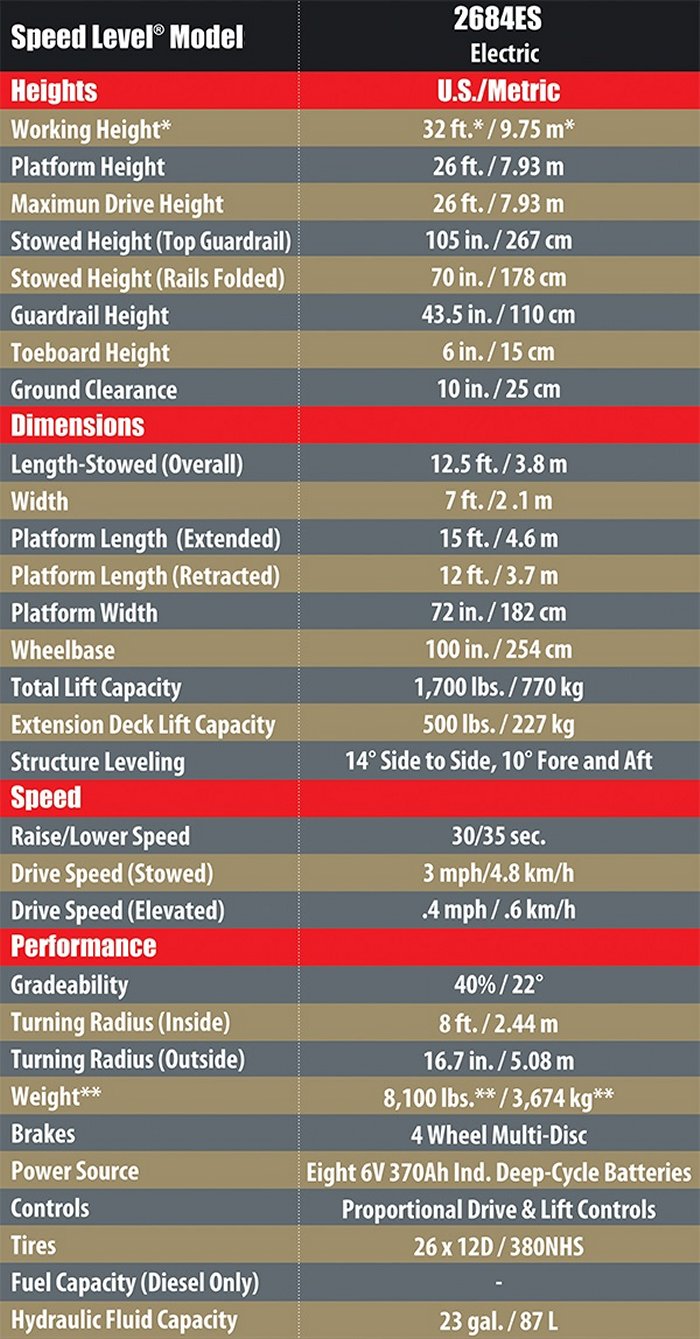

• 26 ft. Platform Height
• 84 in. Machine Width
• 150 in. Machine Length
• 1,700 lbs. Platform Capacity
• 8,100 lbs. Machine Weight

Work Area

• Roll-Out Deck Extension with Incremental Locking Positions
• Standard Swing Gate
• 110v Power to Platform
• Automatic Platform Leveling
• Large Sheet Material Loading Entrance
• Lanyard Attachments

Performance

• Up to 45% Gradeability
• Fully Proportional Drive and Lift Controls
• Oscillating Axle
• 4WD with Traction Control

Power

• DC Battery with Battery Charge Indicator and Industrial Grade, Solid State Battery Charger
• Serviceability
• Lubrication-Free Scissor Bearings
• Easy Maintenance Access to Mechanical and Electrical Components
• Logically Grouped Components and Numbered Wiring for Easy Reference

Safety

• Lift Control Orientation to Mitigate Overhead Entrapment
• Dedicated Compartments Protect Electrical and Hydraulic Components
• Emergency Shut-Off at Platform and Lower Controls
• All Motion Alarm
• Non-Skid Metal Deck Construction
• Drive Speed Interlock
• Multi-Axis Tilt Sensor
• Multiple Disc Brakes, Manual Brake Release
• Four Wheel Automatic Parking Brake
• Flashing Beacon Automotive Horn

Other Features

• Standard On-Board Diagnostics
• Removable Upper Controls
• Fold-Down Guardrails
• Hour Meter
• Machine Tie Downs
• Standard Foam Filled RT Tires

• Up to 1,700 lbs. (770 kg) Platform Capacity
• Platform Leveling on Slopes, Automatic or Manual Selection, with an 14° Side to Side and 10° Fore and Aft Slope Leveling Capability
• 4wd Power Package Giving 45% Gradeability
• Proportional Drive and Lift Controls
• Non-Skid Metal Deck Construction
• Large Sheet Loading Entrances (Fore and Aft)
• No-Maintenance Bearings

• Airline to Platform
• Cold Weather Package
• Platform Work Lights
• Non-Marking Tires
• Pipe Rack
• AC Inverter
• 420Ah Deep Cycle Batteries
• Second Year Extended Warranty

AC Inverter
Onboard AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords.

Cold Weather Package
Aides in machine start-up and performance in cold weather environments

Platform Work Lights
4 LED work lights increase productivity and visibility when maneuvering in low-light conditions.
