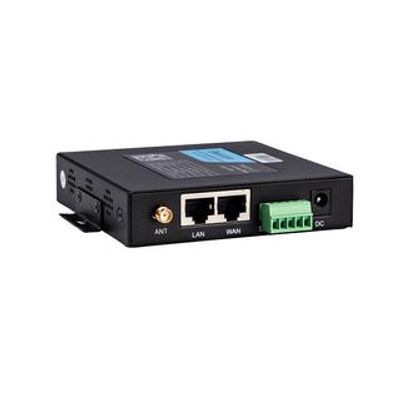

Bivocom - Model TR321-M -Router
OPEN WRT, support second development. 1x WAN(Can be configured as LAN), 1x LAN(10/100M), 1x RS232, 1x RS485(Option). LTE-M/PPPoE/DHCP and Static address connection mode, switchover between wired and wireless connectivity. Support MQTT protocol.
Most popular related searches
- OPEN WRT, support second development
- 1x WAN(Can be configured as LAN), 1x LAN(10/100M), 1x RS232, 1x RS485(Option)
- LTE-M/PPPoE/DHCP and Static address connection mode, switchover between wired and wireless connectivity
- Support MQTT protocol
- APN/VPDN to ensure the security of data transmission.
- Multiple VPN protocols, IPSec, L2TP, PPTP, GRE(Option) and OPEN VPN.
- APN/VPDN to ensure the security of data transmission.
- Multiple VPN protocols, IPSec, L2TP, PPTP, GRE(Option) and OPEN VPN.
- DHCP server, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, Traffic Analysis, Real-time display of data transfer rate, etc.
- TCP/IP, UDP, FTP, HTTP network protocols.
- SPI Firewall, DoS attack, VPN traversal, Access Control, Port Mapping, DMZ Mapping, Access Control List(ACL), IP-MAC binding and Clone function, etc.
- Heartbeat link detection, offline automatic reconnection.
- Hardware and software auto inspection technology, enable operation fault auto repairing.
- Status query of system, network connection, routing.
- Telnet, web, ssh configurations.
- Web upgrade, local system log, remote log, serial port output log.
- WIFI(Option) or GPS(Option)
- Remote configuration and management
- System
- CPU: Industrial 32-bit
- FLASH: 16MB(Extendable to 32MB)
- SDRAM: 128MB(Extendable to 256MB)
- Cellular Interface
- LTE CAT M1/NB1, EDGE/GPRS
- Note: CAT NB1, EDGE/GPRS are unavailable on TR321-MS7A
- Cellular Antenna Interface
- Number of Ports: 1
- Note: Standard SMA female antenna interface, characteristic impedance 50Ω
- SIM Interface
- Number of Ports: 1
- Note: Standard drawer type card holder, support 1.8V/3V
- SIM/UIM card, built-in 15KV ESD protection
- Ethernet Port(RJ45)
- Number of Ports: 2, 1x WAN(Can be configured as LAN), 1x LAN
- Note: 10/100M, Auto MDI/MDIX, 1.5KV magnetic isolation protection
- WIFI (Option)
- Standard: IEEE802.11b/g/n for wireless LAN
- Transmission Rates:
- IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
- Security: WEP, WPA/WPA2
- TX Transmit Power: 18dBm(11g), 21dBm(11b)
- RX Sensitivity: <-72dBm@54Mpbs
- GPS (Option)
- Support from the built-in cellular module
- Note: GPS may be unavailable for some cellular modules.
- Serial Interface (5-PIN Industrial terminal block)
- Number of interfaces: 2, 1x RS232, 1x RS485(Option)
- Note: Built-in 15KV ESD protection, and TTL GPIOs is customizable
- Serial Communication Parameters
- Baudrate: 300~230400bits/s
- Data Bit: 5, 6, 7, 8 bits
- Stop Bit: 1, 1.5, 2 bits
- Check: No, Even-parity, Odd Parity, SPACE and MARK
- Power Requirements
- Standard Power: DC 12V/1.5A
- Power Range: DC 5~35V
- Note: Built-in power inverting protection and over voltage protection
- Power Consumption
- Communication: 123~250mA@12VDC
- Standby: 110~200mA@12VDC
- Scheduled Shutdown: 2mA@12VDC
- LED Indicators
- Power, Signal Strength, System, Online, Alarm, WAN and LAN
- Reliability
- EMC up to level 3
- Use NTP technology, build-in RTC
- SIM/UIM card port built-in 15KV ESD protection
- Warranty
- Warranty Period: 12 months
- Environmental Limits
- Operating Temperature: -35~+75ºC(-31~+167 ºF)
- Storage Temperature: -40~+80ºC(-40~+176 ºF)
- Ambient Relative Humidity: 93%±3%, non-condensing
- Physical Characteristics
- Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
- Housing: Iron
- Weight: 320g(0.71lbs), router host only, accessories not included.
- Dimension: 100x100x23mm(3.94x3.94x0.91 inches), Antenna and other accessories not included
