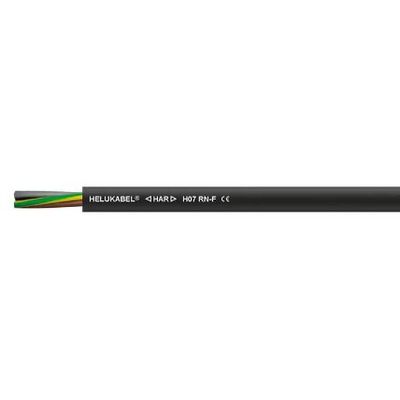

HELUKABEL - Model H07RN-F / 07RN-F - Rubber Insulated Flexible Cable
The H07RN-F / 07RN-F cable is a robust and flexible rubber insulated cable designed to withstand mechanical stresses and challenging environments. It is primarily used in industrial applications, such as machinery, construction sites, and agricultural facilities, where high resistance to wear and tear is crucial. The cable is constructed to endure both low and high temperatures, retaining its flexibility and insulation integrity. Its design complies with international standards, ensuring compatibility and safety across diverse applications. The cable's versatility extends to its variety of sizes and configurations, available for different current capacities and mechanical loads. The H07RN-F / 07RN-F cable is an ideal choice for dynamic installations thanks to its durability and resistance to chemicals and oils. It meets the HAR and EAC compliance requirements, which further assures users of its quality and reliability for use in demanding industrial settings.
Rubber connection cable, H07RN-F acc. to DIN VDE 0285-525-2-21 / DIN EN 50525-2-21; 07RN-F in alignment with DIN VDE 0285-525-2-21 / DIN EN 50525-2-21
- Temperature range -
- flexible -25°C to +60°C
- fixed -30°C to +60°C
- Conductor operating temperature - +60°C
- Nominal voltage - AC U0/U 450/750 V
- Max. permissible operating voltage -
- alternating current (AC) conductor/ground 476 V
- three-phase alternating current (AC) conductor/conductor 825 V
- direct current (DC) conductor/ground 619 V
- direct current (DC) conductor/conductor 1238 V
- Test voltage conductor/conductor - 2500 V
- Tensile stress - during installation and operation, 15 N/mm²
- Minimum bend radius -
- fixed 4x Outer Ø
- flexing, guide roll 7.5x Outer Ø
- flexing, drum winding 5x Outer Ø
