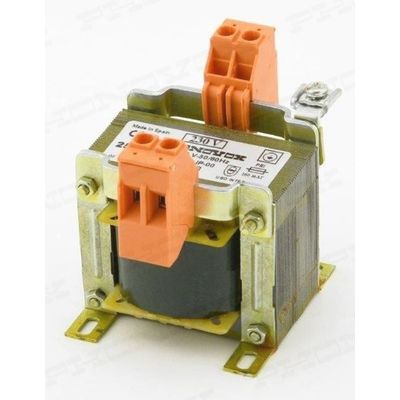

PHONOVOX - Model Serie TP-00 -Safety Transformers for Underwater Lighting

SHARE
Phonovox S.A. offers the TP-00 Series safety transformers, specifically engineered for underwater lighting applications in swimming pools, fountains, and diverse outdoor lighting installations. These transformers are developed to be installed within a control panel, boasting an IP-00 protection rating. The series accommodates a range of power and voltage configurations in both primary and secondary circuits, customizable according to specific requirements. The technical design focuses on ensuring effective and reliable power transformation for lighting systems that demand safety as a paramount concern. With the underlying flexibility in design, the TP-00 Series effectively supports various configurations to accommodate unique project needs, making it suitable for a variety of lighting applications.
Most popular related searches
power transformer
lighting system
transformer installation

The safety transformers PHONOVOX are specially designed for using with underwater Lighting in swimming pools, fountains and outdoor lighting of all kinds. TP-00 Series are safety transformers with IP-00 protection rate that allows their installation inside a control panel.

  • Safety transformer
  • Manufactured according to the standard 61558-2-6
  • Transformer with circuit separation.
  •  Optional: Protected against overloads and overheat by a built in thermal protector with self resetting system.
  • Opcional :Electrostatic screen between primary and secondary windings.
  • Connection terminal for grounding.
  • Transformer for indoor built-it in use.
  • Complete varnish coating for insulation and corrosion protection.
  • Degree of Protection: IP00
  • Class I.
  • Terminals protected against electric shocks.
  • Temperature: 40 ºC.
  • Insulation Class B (130 ºC).
  • Windings: Class H (180 ºC).
  • Dielectric Strenght ( Primary/Secondary): 3.500V.
  • Dielectric Strenght ( Primary/ Mass): 1.800V.
  • Galvanic isolation between primary and secondary.
  • Frequency: 50/60 Hz.
  • Primary Voltage: 230V AC
  • Secondary Voltage: 12V AC or 12-13-14V AC ( Voltage adjustments in the primary)
