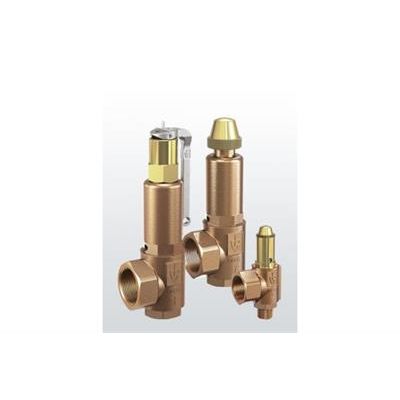

Goetze - Model Series 851 -Safety Valves
Safety valves made of gunmetal, angle-type with threaded connections. A proven series with an extremely compact design: with its very good price / performance ratio this valve has been proving its reliability for many years. In addition to the flexible basic version, according to the version and sealing material in question, this valve can be used for a varied range of applications, media and temperatures. As an optional extra, these valves can be fitted with metal bellows and / or a gastight cap. Consequently, these valves can be configured for applications involving non-neutral, inflammable, toxic and viscous media.
Most popular related searches
Valve size
DN 15 to DN 501/2" to 2"
Pressure
0.5 bar to 50 barTemperature
-60 °C to 225 °CProduct design
angle-type
Material
Gunmetal
Nominal width
DN 15 to DN 50
1/2" to 2"
Medium
- Liquids
neutral, non-neutral - Air, gases and vapours
neutral, non-neutral - Steam
neutral, non-neutral - Solar heating systems
Temperature in °C
-60 °C to 225 °C
Pressure in bar
0.5 bar to 50 bar
