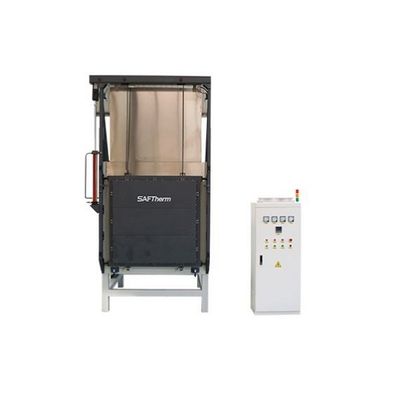

SAFThem - Model STD-1000-12 -1200°C Automatic Door Industrial Box Furnace
The 1200C automatic door industry furnace is used for heat treatment processes such as quenching, tempering, normalizing, and annealing of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is very suitable for small batch production and testing in laboratories and factories.
Most popular related searches
industrial furnace
furnace
industrial chamber furnace
refractory brick
thermal insulation
chamber furnace
energy consumption
energy saving
silicon carbide
refractory lining
Furnace Shell
- The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion.
- Strong metal frame shell structure, low furnace surface temperature.
- Electro-hydraulic lifting furnace door, with limit switch.
- The automatic opening switch of the furnace door can be selected from button type and foot type.
Refractory
- Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption
Heating System
- High-quality metal or ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
- Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace
- The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.
Temperature Control Panel
- PID and SCR control mode, precise temperature control
- International standard thermocouple, long service life
- The furnace door is equipped with a door-opening power-off safety protection switch
- The temperature controller is on the right side of the furnace body, and an independent control cabinet can also be selected
Program Controller
- Advanced controllers that meet complex process requirements
- Simple operation, flexible programming
- Programmable 30 segments for a single curve
- Over temperature and fault alarm, automatic safety protection
- Optional manual air intake and automatic clamshell exhaust
- Furnace rapid cooling control system can be selected to realize rapid cooling within the furnace temperature of 400°C
- Model No. :STD-1000-12
- Chamber Size : 1000x1000x1000MM
- Continuous Temp. : 1100?
- Max Temperature:1200?
- Heating Element :Alloy Resistance Wire(HRE)
- Voltage:380V
- Temperature Precision ±1?
- Thermocouple:N type
