SANDS - Model SYNTIME - GPS Time Server ...

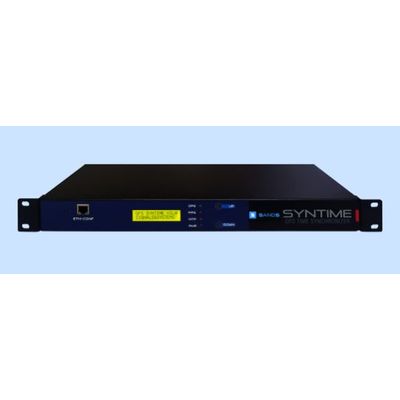

SANDS - Model SYNTIME -GPS Time Server for Network Time Synchronization

SHARE

The SYNTIME GPS Time Server is a Stratum 1 NTP server designed for precise time synchronization across diverse industries, including power, telecommunications, and IT. It supports a range of time code and pulse signal outputs, such as 1PPS, IRIG-B, and NTP, through various ports like RS232/RS485 and fiber. Featuring a built-in GPS receiver with battery backup, the server ensures accuracy during power outages and fast recovery when power returns. It operates with both redundant and non-redundant GPS receivers and power supply options, making it highly reliable in critical environments. The SYNTIME device is compatible with NTP and SNTP clients over LANs, fully supporting protocols like IPv4, TCP, and HTTP, along with security mechanisms such as MD5 authentication. Its multi-user interface options include Web, SNMP, SSH, and Ethernet for configuration, with a specific focus on management and security. The server also supports synchronization of IEC61850-compliant devices and offers remote diagnostic and alarm capabilities via SNMP and SYSLOG.

Most popular related searches

AC-DC power supply

solid state relay

DC power supply

industrial power

GPS Time Server (SYNTIME) is capable for the time synchronization requirements in various industries like power, process, IT, telecommunications, etc. It generates wide range of time code and pulse signals via different output ports like 1PPS, IRIG-B TTL/AM, NTP, Serial (RS232/RS485), PTP, Fiber ports.

GPS Time Server (SYNTIME) has redundant and non-redundant options for power supply and GPS receiver functionality. SYNTIME has a 16 x 2 LCD display for viewing of time parameters, status of GPS receiver parameters, discrete LEDs provide at-a-glance status and health information. The GPS receiver has a built-in RT with battery backup to maintain accurate time during power loss and instant recovery upon power restoration.

Network Time Protocol (NTP)
GPS Time Server (SYNTIME) is a Stratum 1 GPS-based full featured NTP Server for synchronizing all types of NTP and SNTP clients in LAN. NTP v2/v3 and v4 with all modes (Unicast/Broadcast/Multicast) and NTP related all necessary MD5 authentication mechanisms are provided in this device.

Networking Protocols
SYNTIME supports a full suite of networking protocols for its own administration and configuration management. These are IPv4, TCP, HTTP, SNMP, SSH, SCP, SYSLOG.

Security Features
SYNTIME provides secured access for configuration and management via HTTP. It supports full featured SNMP protocol with MD5 mechanisms. Users can configure through Ethernet port with username & password.

Parallel tracking of 22 satellites
GPS-based time server available in Redundant & Non-Redundant options
Ethernet ports
NTPv2/v3 and NTPv4 with MD5 authentication & symmetric and autokey management
Secured web server
IPv4, SNMP, SSH, SCP, HTTP, SYSLOG, FTP, networking protocols
Remote alarm notifications via SNMP, SYSLOG
Universal time-zone and DST settings
Supports synchronization of IEC61850 compliant devices via NTP/SNTP protocol
Universal (AC/DC) power supply
Highly accurate OCXO type crystal
Programmable Pulse Outputs
Solid state relays for programmable events
NTP Client Synchronization software
Diagnostic relay outputs

Supporting Time Protocols

NMEA [GPRMC, GPZDA, GPGGA], NGTS, T-FORMAT
IRIG-B Modulated
IRIG-B TTL
PFC
PTPv2
SNTP/NTP
SNTP / NTP – FO & PTP -FO
Pulse-FO and IRIG-B TTL-FO
RS485(IRIG-B PWM)
10MHz

Event Loggers
Disturbance Recorders
Electronic tri-vector meters
Distribution Automation System
Numeric Relays
Slave display clocks
Servers of EMS and Switchyard
Electronics Instruments
Standalone computers
DCS (SCADA) system
