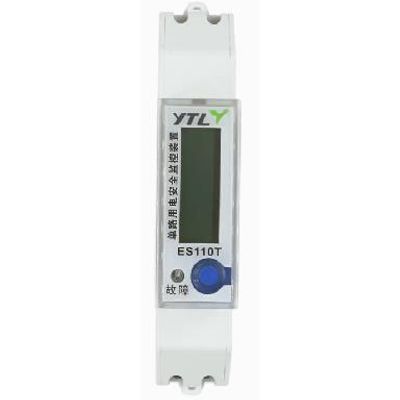

YTL - Model L11E001 -School Dormitory Electrical Safe Single Phase Smart Home Monitor
This is a multi-functional smart power security monitoring device. It is able to monitor the real time cable temperature and leakage. Data can be uploaded on time, and real time monitoring of power consumption, abnormal conditions in a timely alarm manner. This can help the users better to manage the regional electricity security.
Most popular related searches
energy meters
energy meter
energy metering
power sensor
energy saving
electricity meter
power monitoring system
power monitoring
energy smart meter
electrical power meter
- Auxiliary power supply range： 175~265VAC
- Standard： GB 14287.2 GB 14287.3
- Frequency： 50Hz
- Power consumption： ≤8VA ≤0.4Wh
- Temperature detection range： -50~150℃
- Current leakage detection range： 20~1000mA
- Current leakage CT models： 0~100A（2000:1）
- Display： temperature LCD3+1current leakage LCD1+3
- Device working temperature range： -20～70℃
- Average relative humidity：75%
- Maximum humidity value： 95%
A multi-functional button
Material
- Base PC+ABS
- Cover PC+ABS
- Terminal cover PC+ABS
- Hook ABS
- Height 90.0mm
- Width 18mm
- Depth 72mm
- Weight 0.12kg（net weight）
- The energy meter shall not be subjected to severe shock in transportation and storage, and shall be transported and stored in accordance with the provisions of GB13384-2008 "general technical conditions for instrumentation packaging";
- Energy meter should be stored in the original packaging, the temperature range of the local environment is 0-40℃, the relative humidity is not more than 85%, the air is free of corrosive gas; The energy meter is kept in the warehouse, should be placed on the bench, stacked height does not exceed 10 cartons, after unpacking, the single packaging of the energy meter stacking height does not exceed 5 layers.
