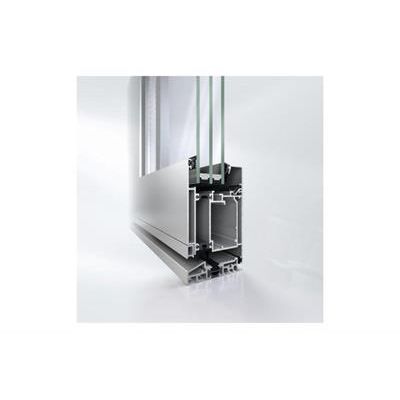

Schuco - Model AD UP 75 -Universal Platform Aluminium Door System
Door system with 75 mm basic depth for universal use as heavily used commercial door and stylish entrance door. The Schüco AD UP 75 Universal Platform aluminium door system combines outstanding thermal insulation properties with a high degree of stability. Thanks to its special design principle, the door system offers excellent structural values and ensures a high level of functional reliability for every application – both in luxury homes and in commercial projects.
A double insulation zone and the integration of the centre gasket and glazing rebate insulation that are part of the system standard form the basis for thermal optimisation and a flexible increase in energy efficiency. The modular configuration of the gasket system and the optional use of glazing rebate insulation allow the Schüco AD UP 75 door series to achieve Uf values as low as 1.6 W/(m²K).
In addition to the basic design with rebate gasket, the Schüco AD UP 75 door system offers additional fitting options for increased requirements. The use of a centre gasket in combination with a rebate-free, easy-access threshold make it possible to have the highest system performance features such as weathertightness values up to 750 Pa.
- Identical work and fabrication steps thanks to universal construction principle across basic depths with high use of identical parts
- One barrel hinge for all applications: With clamping anchor technology as well as enhanced adjustment options for simple and time-saving installation
- Easy to install unit for newbuilds and renovations by means of frame anchor and fixing lug thanks to central unit fixing in the aluminium
- Thermally broken aluminium composite threshold with concealed fixing to building structure which can be removed or replaced retrospectively if it is damaged
- Structurally optimised sealing of the base point: Gasket installation without supplementary profiles and drip bar, tubular lip gasket with gasket lip (contact-free) as protection from water splashing and use across all systems (two or three sealing levels)
- System basic depth
- 75 mm
- Uf value of frame (≥)
- 1.6 W/(m²·K)
- Max. height
- 3000 mm
- Width max.
- 1400 mm
- Max. glass/panel thickness
- 53 mm
- Area of application
- Residential projects
Commercial projects - Surface finishes
- Powder
Anodised
- Air permeability
- Class 4
- Watertightness
- E 750
- Wind load resistance
- Class C3 / B3
- Burglar resistance
- Up to RC2
- Impact resistance
- Class 1
- Max. vent weight
- 200 kg
