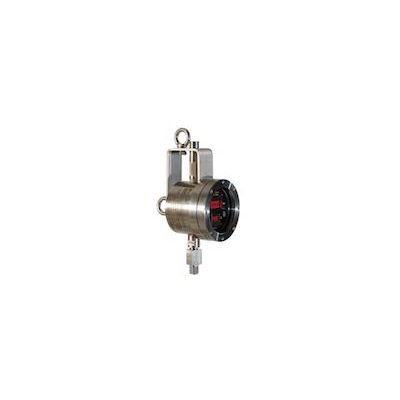

Scotia - Model SSDG - Subsea Digital Gauge
The SSDG has a maximum operating depth of 1000 metres. The basic unit consists of the gauge itself, battery charger, Subcon plug and a neat protective case to carry it in. It boasts a 25 to 1000 bar pressure range and 0 to 100°C temperature range.
Most popular related searches
- Maximum operating water depth of 1000m
- 25 to 1000 bar pressure range, spec ±0.25% of fs +1 lsd
- 0-100°c temperature range
- Light activated
- 4 digit display with resolution to 0.1bar
- 3 digit display with resolution to 0.1°c
- Illumination period, 1 minute default setting, after light source removed
- Rechargeable batteries with external charger, 2 hour charging time
- Maximum battery life is 16 days when switched on
- Provides 1400 activations from a full charge
- Stainless steel housing
- Process connection supplied with sacri cial ½” nptm adapter
- 100mm diameter display
- Gauge dimensions: height 32cm, diameter 13.5cm
- Weight in air 5.75kg
- Supplied complete with 2 o M10 eyebolts
- Peli case dimensions: length 50cm, width 39cm, depth 24cm
