Contura - Model II & III -Sealed Rocker Switches

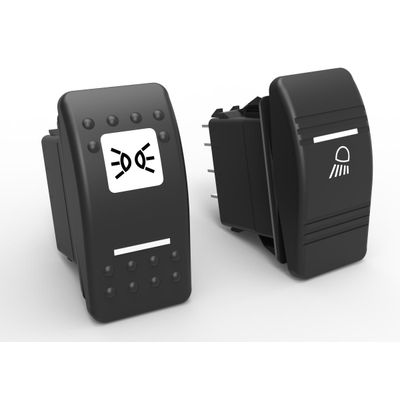

Certified to IP66/68, the V-Series Contura II & III rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C. Contura II & III styles feature square and bar lens options with convex actuators constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura II features 2 rows of raised bump finger traction on top and bottom of rocker. The Contura III features 3 rows of ridged finger traction on top and bottom of rocker. Both actuator options have flush style brackets.
Certifications: UL CSA
Number of Poles: 1-2 poles
Ratings:
10A 250VAC
15A 125VAC
1/2HP
15A 125VAC
1/2HP
12(2)A 125VAC uT85
15A 125VAC
1/2HP
12(6)A 125VAC T85
10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(2)A 250VAC uT85
10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(6)A 250VAC T85
15A 24V
20A 18V
20A 12V
20A 6V
20A 3V
Circuits:
On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)
Variety of Special Circuits available
Dielectric Strength:
2,000 V RMS opposite polarity
4,000 V RMS between live parts and operator accessible surface
Insulation Resistance: 50 megohms (minimum)
Base Material: Polyester
Actuator Style:
Convex rocker with bumped finger traction
Convex rocker with ridged finger traction
Illuminated convex rocker with square lens
Illuminated convex rocker with bar lens(es)
Illuminated convex rocker with combination square and bar lenses
"Soft Touch" versions of rockers listed above
Locking Rocker
Actuator Material:
Underlay/lens - Polycarbonate
Hard overlay - Nylon
Soft Touch overlay - Thermoplastic elastomer
Bracket/Bezel Material: Nylon
Terminal Options: .250 QC Tabs
Mounting Method: Snap-In
Mounting Hole Dimensions: .83" x 1.45" ; 21.08mm x 36.83mm
Value Added:
Customer colors and legends available
Special circuits
Mounting Panels
Optional lock-on terminal connector
Hole Plug
Actuator removal tool
and more
- On/Off-Highway
- Marine
- Armored Vehicles
- Industrial Automation
- Commercial Food
- Medical Equipment
- Any application requiring environmental protection
