Contura - Model IV, V & VII -Sealed Rocker Switches
Certified to IP66/68, the V-Series Contura IV, V & VII rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

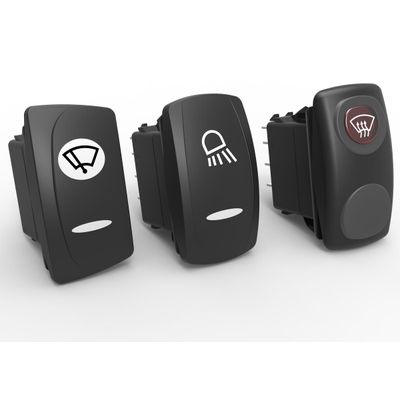

Contura IV & V styles feature oval and elliptical lens options. Actuators have a two-textured (gloss and matte) surface for an intuitive, tactful feel. The Contura IV’s asymmetrical “orange wedge” shape can be mounted as half-moon, triangle or stack. The Contura V’s symmetrically curved shape allows this actuator to be mounted alone, in groups or between two Contura IVs. Laser etched options are available for both the IV and V.
Contura VII actuators feature gently curved corners and edges with soft textured, embossed circular pads at the top and bottom of the rocker for an intuitive feel. Any combination of oval and elliptical lenses can be located inside the pads. All three actuator options have flush style brackets.
Certifications: UL CSA
Number of Poles: 1-2 poles
Ratings:
10A 250VAC
15A 125VAC
1/2HP
15A 125VAC
1/2HP
12(2)A 125VAC uT85
15A 125VAC
1/2HP
12(6)A 125VAC T85
10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(2)A 250VAC uT85
10A 250VAC
15A 125VAC
1/2HP 125-250VAC
12(6)A 250VAC T85
15A 24V
20A 18V
20A 12V
20A 6V
20A 3V
Circuits:
On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)
Variety of Special Circuits available
Dielectric Strength: 2,000 V RMS opposite polarity
4,000 V RMS between live parts and operator accessible surface
Insulation Resistance: 50 megohms (minimum)
Base Material: Polyester
Actuator Style:
Asymmetrical curved rocker with oval lens (es)
Asymmetrical curved rocker with bar lens (es)
Asymmetrical curved rocker with combination oval and bar lenses.
Asymmetrical curved locking rocker with or without lens
Symmetrical curved rocker with oval lens (es)
Symmetrical curved rocker with bar lens (es)
Symmetrical curved rocker with combination oval and bar lenses.
Symmetrical soft rounded rocker with oval lens (es)
Symmetrical soft rounded rocker with rounded bar lens (es)
Symmetrical soft rounded rocker with combination oval and rounded bar lenses.
Actuator Material: Underlay/lens - Polycarbonate
Hard overlay - Nylon
Soft Touch overlay - Thermoplastic elastomer
Bracket/Bezel Material: Nylon
Terminal Options: .250 QC Tabs
Mounting Method: Snap-In
Mounting Hole Dimensions: .83" x 1.45" ; 21.08mm x 36.83mm
Value Added:
Custom colors and legends available
Special circuits
Hazard warning circuits
Modular or single piece mounting brackets
Optional lock-on terminal connector
Hole Plug
Actuator removal tool
and more
- On/Off-Highway
- Marine
- Armored Vehicles
- Industrial Automation
- Commercial Food
- Medical Equipment
- Any application requiring environmental protection
