Contura - Model VI -Sealed Rocker Switches

SHARE

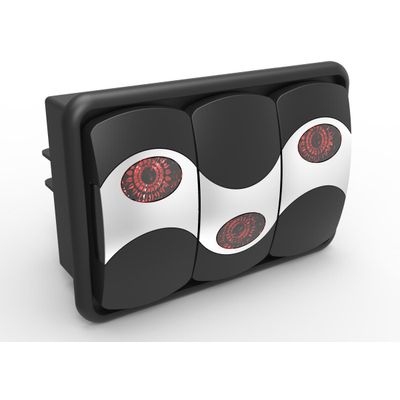

Certified to IP66/68, the V-Series Contura VI rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C. Contura VI features oval and elliptical lens options. When used in a row, this actuator style creates a unique WAVE design, making them ideal for any boat panel. Replaceable WAVE inserts are available in black, white, bright chrome, satin chrome, bright nickel and satin nickel. Contura VI actuators have a flush style bracket.

Certifications: UL, CSA
Number of Poles: 1-2 poles

Ratings:
10A 250VAC
15A 125 VAC
½ HP

15A 125VAC
½ HP
12(2)A 125VAC uT85

15A 125VAC
½ HP
12(6)A 125VAC T85

10A 250VAC
15A 125VAC
½ HP 125-250VAC
12(2)A 250VAC uT85

10A 250VAC
15A 125VAC
½ HP 125-250VAC
12(6)A 250VAC T85

15A 24V
20A 18V
20A 12V
20A 6V
20A 3V
Circuits:
On-Off
(On)-Off
On-(Off)
On-On
On-(On)
On-Off-On
On-Off-(On)
(On)-Off-(On)

Variety of Special Circuits available

Dielectric Strength:
2,000V RMS opposite polarity
4,000V RMS between live parts and operator accessible surface

Insulation Resistance: 50 megohms (minimum)
Base Material: Polyester

Actuator Style:
Asymmetrical curved rocker with oval lens(es)
Asymmetrical curved rocker with bar lens(es)
Asymmetrical curved rocker with combination oval and bar lens(es)
Symmetrical curved rocker with oval lens(es) and high or low wave insert
Symmetrical curved rocker with oval lens(es) and high or low wave insert
Symmetrical curved rocker with bar lens(es) and high or low wave insert
Symmetrical curved rocker with combination oval and bar lens(es) and high or low wave insert

Actuator Material: Underlay/lens – Polycarbonate
Hard overlay – Nylon

Bracket/Bezel Material: Nylon
Terminal Options: .250 QC Tabs, Solder Lugs, Wire Leads
Mounting Method: Snap-In
Mounting Hole Dimensions: .83” x 1.45”; 21.08mm x 36..83mm

Value Added:
Custom colors and legends available
Special circuits
Hazard warning circuits
Modular or single piece mounting brackets
Optional lock-on terminal connector
Hole plug
Actuator removal tool
and more
