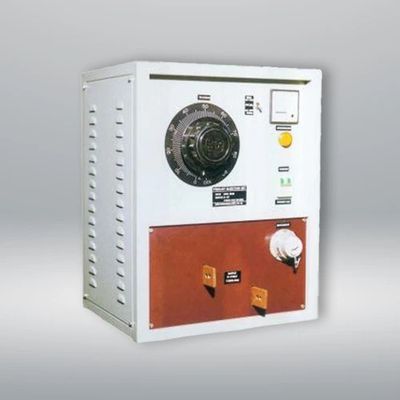

Sudharsan - Model Type SI/CV – 200 - Secondary Injection - Over Current Relay Test Kits

SHARE

The CURRENT RELAY TEST KIT Type SI/CV – 200 is a specialized testing equipment designed for the evaluation and calibration of current relays commonly used in electrical protection systems. This kit is an essential tool for electrical engineers, technicians, and maintenance personnel involved in power system protection and relay testing.

Most popular related searches
relay test
relay testing
electrical engineering
protection relay test
protective relay testing
protective relay
electrical system
  • 530 x 510 x 570 mm
  • Approx Weight: 59 Kg
  • Secondary Injection Testing of Static-Over current/Earth fault relays/Electromagnet (CDG) relays
Input : 220 – 240 V, 50Hz, 20 Amps
Output :
  1. AC Injection current – Isolated from Mains – 60 Secs. Rating.
    Continuously adjustable from 0.01 – 200 Amps
  1. Auxiliary Ac & Dc supply 0- 250 Volts, 0.5 Amps.
    With only Dc Volt meter.

  • Undistorted Sine wave Injection Current
  • Performance comparable to Alstom...s CFB Test kit
  • Simultaneous availability of AC Injection Current and auxiliary AC / DC outputs
  • Digital Panel meters for Volt / Amp / Timer.
  • Suitable for both NO / NC trip contacts of Relays Under Test.
  • Input overload protection with MCB for Current Injection and 0.5A glass fuse for Auxiliary AC/DC outputs.
  • Powder coated ms enclosure, portable with lifting handles and front panel protection with a lockable hinged cover
