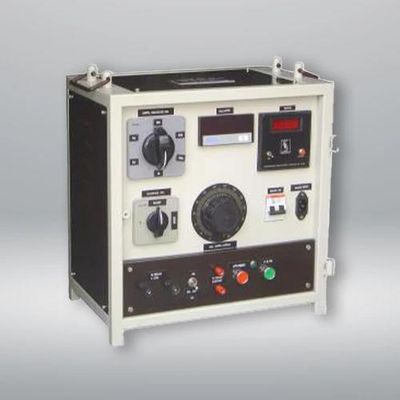

Sudharsan - Model SI / C – 100 & SI / C – 50 - Secondary Injection - Over Current Relay Test Kits
A Secondary Injection Over-Current Relay Test Kit, with models Type SI/C-100 and SI/C-50, is specialized test equipment designed for the calibration and testing of over-current protection relays. These relays are critical components in electrical systems, responsible for detecting and responding to over-current conditions, such as short circuits or overloads. Testing and calibration of these relays are crucial to ensure the protection system operates correctly and prevents electrical faults and damage.
Most popular related searches
- Features and performance similar to the types SI / CV- 50 and CV – 100, except that there is no provision of Auxiliary AC / DC outputs
- 425 x 390 x 280 mm: Weight: 28 Kg for SI / C-50
- 495 x 450 x 300 mm: Weight: 35 Kg for SI / C-100
Input : 220V, 50Hz , 1Ph
Output : --- for Type SI / C – 100:
AC Injection Current – Isolated from mains ( 60 sec rating), continuously adjustable from 0.01 to 50A on 3VA burden relay
--- for Type SI / C – 50:
AC Injection Current – Isolated from mains ( 60 sec rating), continuously adjustable from 0.01 to 50A on 6VA burden relay
