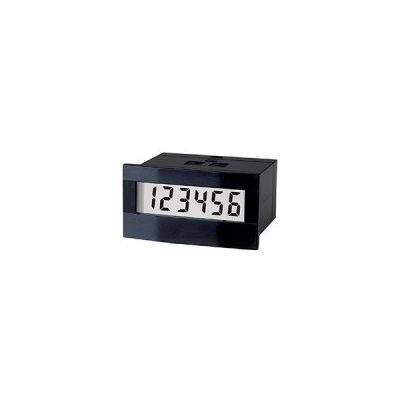

Model GC2 Series - Self-Powered LCD Totalizer

The GC2 Series is a self-powered LCD Totalizer.  It is powered by a replaceable lithium battery that lasts approximately 7 years which makes it ideal for applications where external power is not available.  The GC2 series is available in 6 or 8 digit models with Front Reset or Remote reset options.  Digit sizes for 6 & 8 digtis are 10.6 x 4.8mm and 10.6 x 3.8mm, respectively.  Input signal includes dry contact, open collector, voltage, wide range voltage at maximum count speed upto 30Hz, which makes it a very reliable replacement counter.  Panel size is a DIN 54 x 29 mm with panel cut-out size of 50.0 x 25.0mm.  The front panel protection is IP54 and wiring connection is easily done via the terminal block connector.  CE, UL and RoHS compliant.
