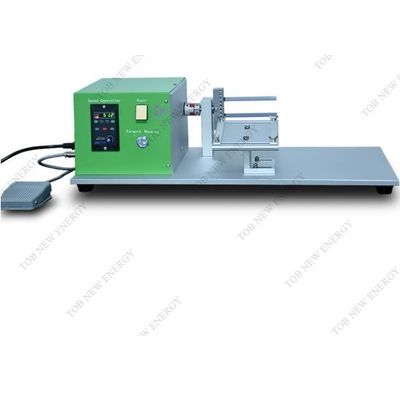

TOB New Energy - Model TOB-JR135-P -Semi-Automatic Winding Machine For Pouch Cell
TOB-JR135-Prismatic semi-automatic winder machineis used for winding battery anode/cathode electrodes with separator together in the research of Li-ion Pouch cell batteries.
Most popular related searches
- Brand: TOB NEW ENERGY
- Item No.: TOB-JR135-P
- Order(Moq): 1set
- Payment: L/C,T/T
- Product Origin: China
- Shipping Port: XIAMEN
- Lead Time: 7days
- Model: Semi-Automatic Winding Machine TOB-JR135-P
- Working Voltage: AC110V/220V, 50/60HZ
- Power: 40W
- Warranty: One Year limited warranty with lifetime support
- Winding Speed: 0 - 170 RPM Adjustable
- Winding blade: The winding width depends on the width of the winding blade
- Customized square winding blade according to battery model
- Winding Mode: Switchable between clockwise and counterclockwise
- Output: 70-100EA/h, according to battery size and maunal
- Product Dimensions
- (L*W*H): 360*310*280mm
- Net weight: About 20kg (45 lbs)
- Application Notes: This machine can be used for prismatic battery with square winding shaft,
- and you can also choose the round winding shaft for cylinder cell core winding,
- We will supply with the suitable winding accessories according to your battery model
