Ecophon Focus - Model Lp -Semi-Concealed Grid System

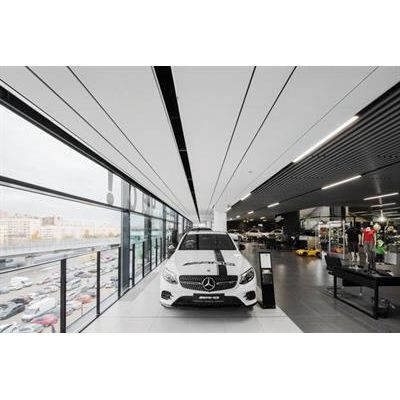

Semi-concealed grid system used for highlighting direction in a room. Ecophon Focus Lp has a semi-concealed grid system and is used for highlighting direction in a room. There is a 20mm wide gap between the tiles in the emphasized direction and narrow gap in the other. Ecophon Focus LP is a patented system with edges which are sharp and well defined. The system consists of standard Focus Lp tiles in 600 or 300 mm width, and Focus Lp Technical tiles in widths of 150, 300 or 600 mm. The tiles are manufactured from high density glass wool. The visible surface has an Akutex FT coating and the back of the tile is covered with glass tissue.
The edges are painted. The Technical tiles are used to create areas for technical installations such as modular luminaires, ventilation, sprinklers, smoke detectors, loudspeakers etc., in conjunction with standard tiles. The exact width (148, 298 or 598 mm) is adopted to suit the standard sizes of luminaires on the market. The gap between a Technical tile and a standard tile will therefore be 11mm. The tiles and Connect grid systems give an approximate weight of 3-4 kg/m2 for the system. The grid is manufactured from galvanized steel. For best performance and system quality, use Connect grid and accessories.
