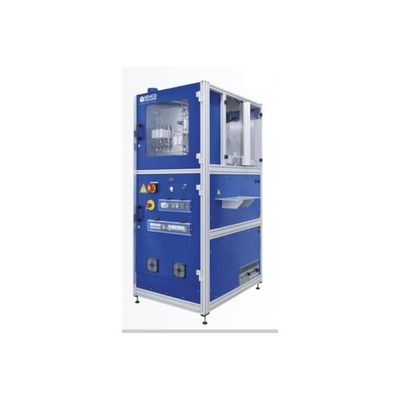

Aster - Model MEMSLAB - Semiconductor

PECVD R&D Platform. Direct Plasma, Low RF. Pin Mark Free, Color Uniform. Horizontal Wafer Process. Up to 25 wafers per batch. Compatible up to 200mm. In-situ Cleaning. SiN, SiON, a:Si, SiC, SiCxNy.
