Model SS-047-025-1000-PU - Semiconductor Strain Gages

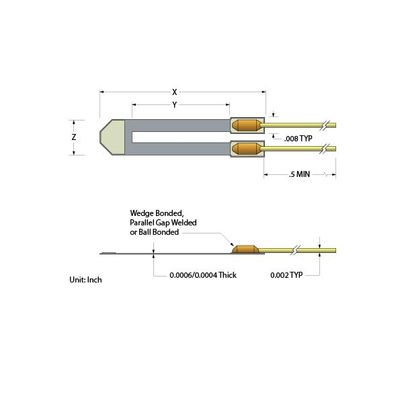

Part Number: SS-047-025-1000-PU. Dimension Z: 0.016”. Lead Type: Welded AU 2.0 mil. Thickness: 0.0004”. Resistance @ 78 deg F: 1000 ± 100 Ohms. Gage Factor: 160 ± 10. TCR*: --20%. TCR*: 28%. Standard Semiconductor Strain Gages are made from "P" doped bulk silicon. They have no P/N junction. The Silicon is etched to shape, eliminating the potential for molecular dislocation or cracks, thereby optimizing performance.
