Model SS-060-040-2500-PM -Semiconductor Strain Gages
FromPiezo-Metrics

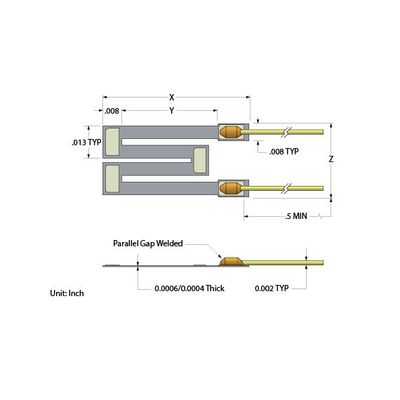

Part Number: SS-060-040-2500-PM. Dimension 0.032”. Lead Type: Welded AU 2.0 mil. Thickness: 0.0004”. Resistance @ 78 deg F: 2500 ± 150 Ohms. Gage Factor: 140 ± 10. TCGF*: -13%. TCR*: 17%. Standard Semiconductor Strain Gages are made from "P" doped bulk silicon. They have no P/N junction. The Silicon is etched to shape, eliminating the potential for molecular dislocation or cracks, thereby optimizing performance.
