Serbot - Model GEKKO -Solar PV Panel Cleaning Robot

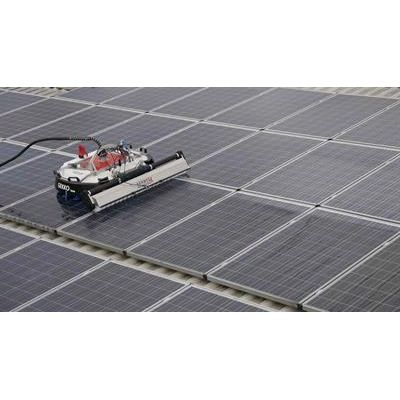

Mobile Cleaning Robot for PV Installations on Roof Tops

• The robot-efficiency reaches up to 400 m² per hour. It`s a good choice for extended roof top installations, where cleaning by hand is hardly feasible.
• The GEKKO Solar cleans rigorously by rotating brushes, executing a constant pressure on the panels and the use of demineralised water.
• The GEKKO Solar is typically used together with a mobile work platform: from here, the operator can lift the robot comfortably to the roof and control it by radio using a joystick.
• There is a little trolley for water an energy supply with a hose of about 100 m in length.
• GEKKO Solar is also suited for small solar farms with narrow panels. In this case, a support wagon supplying water, electrical power and pressurised air ensures an independent operation.

• High cleaning efficiency: 4 times faster than manually
• Precise cleaning: with even quality
• Steep rooftops included: up to 45 °
• Improved safety: no working on roof tops
• Easy handling: operating by joystick and radio control

Cleaning

• Max. cleaning capacity: 576 m2/h
• Max. speed: 9.6 m2/min

Supporting Hose

• Energy / Pressure /Water: 100 m
• Radio Control
• Range: 300 m

Operation

• Water consumption: 0.5-3.0 l/min
• Voltage: 210-230 V
• Power consumption: 0.8 kW
• Air: 100-250 l/min
• Pressure: 8 bar

Dimensions

• Length: 1`800 mm
• Width:(max. cleaning width)* 1`250 mm
• Height: 432 mm
• Weight: 63 kg

Scope of Application

• Max. obstacle width to cross: 250 mm
• Max. obstacle hight to cross: 30 mm
• Max. inclination : 45°
