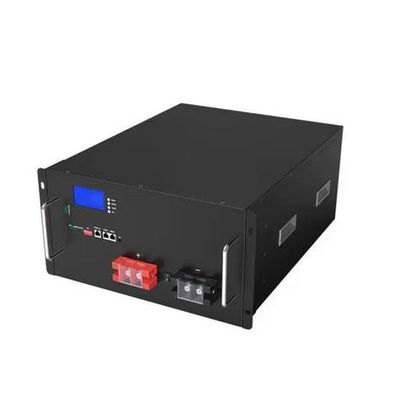

Model 10kWh LiFePO4 48V 200Ah - Server Rack Battery

Technical Spec.:

• Normal Capacity: 200 Ah
• Normal Voltage: 51.2 V
• Energy: 10.24 KWh
• Charge Cut-off Voltage: 58.4 V
• Discharge Cut-off Voltage: 40 V
• Charge Method: CC / CV
• Communication: RS485/CAN/RS232
• Standard Charge Current: 25A
• Max. Charge Current: 50A
• Max. Continuous Discharge Current: 100A
• Pulse Discharge Current (3S): 200A
• Self-discharge Rate: <3% Per Month
• Cycle Life: >4000 Times (80%DOD,@25?):

Mechanical Spec.:

• Dimension (L*W*H): 483*615*244 MM
• Weight: 80 KG
• Casing Material: Metal:

Temp. Spec.:

• Charge Operating Temp.: 0°C--50°C
• Discharge Operating Temp.: -20°C--60°C
• Storage Temp.: 5°C--40°C
• Storage Humidity: <90% @40?:

Other Spec.:

• Certificates: MSDS, UN38.3, CE, FCC
• Warranty: 3 Years
• Service Life: 10 Years

• Long Life & Less Degradation: The server rack LiFePO4 48V 100Ah battery has a longer life cycle, and exhibits less degradation at high temperatures, make them suitable for as backup power to servers, as LiFePO4 battery backup systems for homes in case of power outages, proventing downtime, potential data loss and inconvenience to family.
• Eco-Friendly:The 48V 100Ah LiFePO4 server rack battery is eco-friendly as they do not contain harmful metals such as nickel, cobalt etc. So the server rack 48V 100Ah LiFePO4 battery packs are non-contaminating and non-toxic.


• Compact Size & Lightweight: LiFePO4 batteries are known for their compact size and high power density. They are lightweight and require less maintenance. With modularity design, the rack mount 48V 100Ah LiFePO4 battery can be easily expanded or adjusted to 10KWh, 15KWh, 20KWh, and so on, as needed. This scalability feature allow for convenient maintenance and upgrades without causing any major disruptions to the server operations or household electricity.
• Battery Management System (BMS) Protection:  The rack mounted 48V 100Ah LiFePO4 battery backup features advanced monitoring and management capabilities. These features are implemented to monitor the battery`s performance and health. is equipped with a built-in 16S 100A Battery Management System (BMS) that safeguards against over-charging, over-discharging, over-current, and over-load situations, ensuring the longevity and optimal performance of the battery pack.
• The 48V 100Ah LiFePO4 server rack battery is eco-friendly as they do not contain harmful metals such as nickel, cobalt etc. So the server rack 48V 100Ah LiFePO4 battery packs are non-contaminating and non-toxic.


• Compact Size & Lightweight: LiFePO4 batteries are known for their compact size and high power density. They are lightweight and require less maintenance. With modularity design, the rack mount 48V 100Ah LiFePO4 battery can be easily expanded or adjusted to 10KWh, 15KWh, 20KWh, and so on, as needed. This scalability feature allow for convenient maintenance and upgrades without causing any major disruptions to the server operations or household electricity.
• Extreme Weather Resistance:  The server rack 5 KWh LiFePO4 battery can withstand extreme weather conditions and temperatures. They remain cool at high temperatures and don`t explode when overheated or overcharged. Compared to regular batteries, The 5KWh server rack battery LiFePO4 48V 100Ah are more favored in terms of capacity and runtime. Their design is specially geared toward delivering extended backup power to servers, network equipment or residential electricity.
• Battery Management System (BMS) Protection: The rack mounted 48V 100Ah LiFePO4 battery backup features advanced monitoring and management capabilities. These features are implemented to monitor the battery`s performance and health. is equipped with a built-in 16S 100A Battery Management System (BMS) that safeguards against over-charging, over-discharging, over-current, and over-load situations, ensuring the longevity and optimal performance of the battery pack.

• 48V 200Ah 10KWh Black : 10kWh LiFePO4 48V 200Ah Server Rack Battery
• 48V 200Ah 10KWh White: 10kWh LiFePO4 48V 200Ah Server Rack Battery
• 48V 150Ah 7.5KWh Black: 48V 150Ah LiFePO4 Battery Server Rack
• 48V 100Ah 5KWh Black: 48V 100Ah LiFePO4 5kWh Server Rack Battery
• 48V 100Ah 5KWh White: 100Ah LiFePO4 48V 5kWh Battery Server Rack
• 48V 50Ah 2.5KWh Black: Rack Mounting 48V 50Ah Lithium Ion Battery
