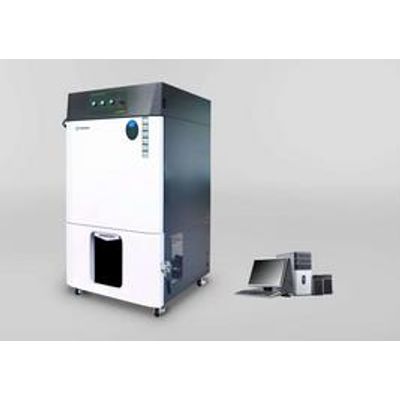

Zhongzhi - Model CZ-JY-2T - Servo Computer Battery Crush Test Chamber

SHARE

Simulation of various types of lithium batteries being squeezed during use. Artificially presents the different situations that can occur when a battery is squeezed.

Most popular related searches
battery test chamber
battery testing
battery safety
lithium battery
lighting system
  • Battery Crush Test Chamber tests the safety of batteries by means of a squeeze test.
  1. The wire is enclosed with a metal fire-proof cover, which is available to prevent flame during testing;
  2. Lighting system is designed to observe the internal testing process;
  3. Nail Penetration/Crush Force controllable within arange from 250N to 13KN, meet current standards;
  4. Wire hole holes allow testing of real temperature or air pressure while a vent hole with an air blower can discharge the exhaust air;
  5. Control system employs an independent control cabinet & separated from the test chamber by a distance of 1-2 meters, which can reduce the noise and improve safety.
