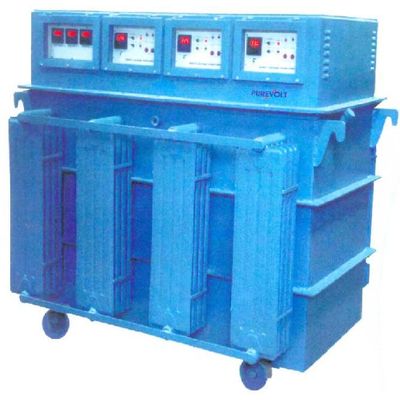

Model 3Ph, Air Cooled - Servo Controlled Voltage Stabiliser
Three Phase, (Unbalanced Type), Air Cooled, Output- 400 V ± 1%, Frequency : 47- 53 Hz, Output Adjustable : 380 – 415 V AC, Regulation : ± 1.0% from No Load to full load, Ambient Temperature : 0° to 55° C, Insulation : Class B, System Design : As per IS : 9815 : 1994, Environment : Designed for indoor continuous operation, Connections : Star / Star
Most popular related searches
| Rating | Input | Input | Input | Input | Input |
| 3KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 5KVA | 300-460v | 360-460v | -------- | -------- | -------- |
| 6KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 7.5KVA | 300-460v | 360-460v | -------- | -------- | -------- |
| 9KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 10KVA | 300-460v | 360-460v | -------- | -------- | -------- |
| 12KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 15KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 18KVA | 300-460v | 360-460v | 270-470v | 240-480v | 190-480v |
| 20KVA | 300-460v | 360-460v | -------- | -------- | -------- |
| 22.5KVA | 300-460v | -------- | 270-470v | 240-480v | 190-480v |
| 25KVA | 300-460v | 360-460v | 270-470v | 240-480v | -------- |
| 30KVA | 300-460v | 360-460v | 270-470v | -------- | -------- |
| 40KVA | 300-460v | 360-460v | -------- | -------- | -------- |
| 45KVA | 300-460v | -------- | -------- | -------- | -------- |
| 50KVA | -------- | 360-460v | -------- | -------- | -------- |
| 60KVA | -------- | 360-460v | -------- | -------- | -------- |
