BJ - SET-X Modular Rectifier/Battery Charger

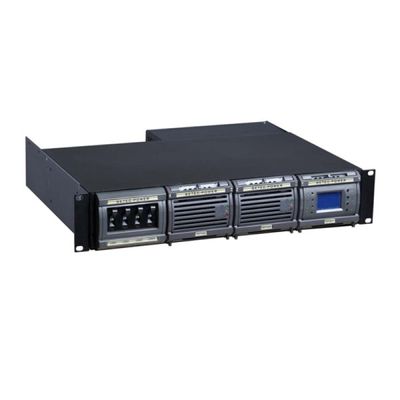

SET rectifier system use advanced modular design, with multiple rectifier modules together in one 19'' rack box. Makes it flexible to provide enough power supply for Telecom and Power Industrial equipment use. The power output of rectifier can flexible configuration, depending on equipped different quantities of rectifier modules. It can provides stable DC output to regular load, battery float charging, and batteryequalized charging. Output constant DC charge power, works automatically according to the load demands.Most popular related searches
- PFC + DC/DC transformation supports a wide input voltage range (85V-290V)
- Hot-swapping, plug-and-play, redundancy with N +1 configuration, and expansion slots.
- 2U-6U height, lightweight, High power density.
- High efficiency, efficiency can be 91% at 10% low power load rate condition, 96% at 50% load rate.
- With stepless current limiter technology, the output current can be continuously adjustable.
- Adopted step-less temperature control speed, reduce power consumption and expand the working life of the fan.
- Monitor battery voltage and charge/discharge current in real-time, with automatic control for boosting and floating charging.
- Automatic load sharing, equalized-current imbalance < 3%
- Collect digital signals using an internal RS485 bus and allow for remote operation through an RS232 interface.
- Optional Ethernet interface through SNMP and/or TCP/IP
