Sferasol - Model SF-A -Integrated Storage Collector Solar System

System Classification

• System Model: Sferasol
• System Code: SF-A
• Classification: forced circulation

Collector System

• Nr. of Collectors: 1
• Gross Collector Surface: 4,524 m2

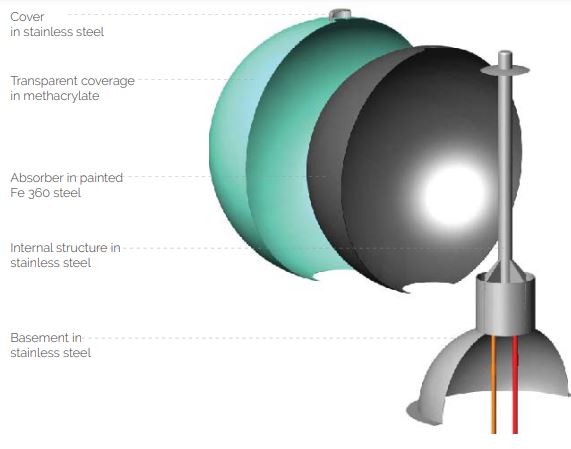

Collector Data

• Type:
• Spherical
• Gross total surface: 4,524 m2
• Aperture surface: 1,130 m2
• Net total surface: 0,891 m2
• Nr. of coverages: 1
• Coverage Material: Merthacrylate
• Coverage thickness: 3 mm
• Structure material: INOX AISI 304 Stainless Steel
• Net mass: 80 kg

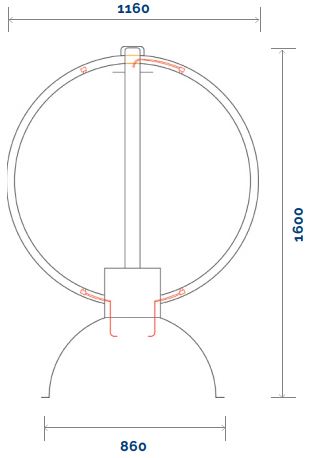

• Outer dimensions: 1200*1200*1600 mm

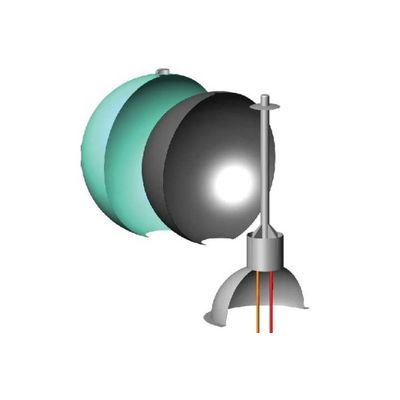

Absorber

• Material: 09/10 P06 steel
• Surface treatment: black selective paint - high opacity
• Connections: copper pipes Ø 8mm

Thermalconvector fluid

• Type:
• mixture of monopropylene glycol + water
• Antifreeze protection: YES

Connections

• Inlet glycol: Ø 1/4”R
• Outlet glycol: Ø 1/4”R

Operating pressure

• Maximum: 0.5 Bar

100% produced in Italy.
ENEA Certified according to norm UNI EN 12976-2:2006

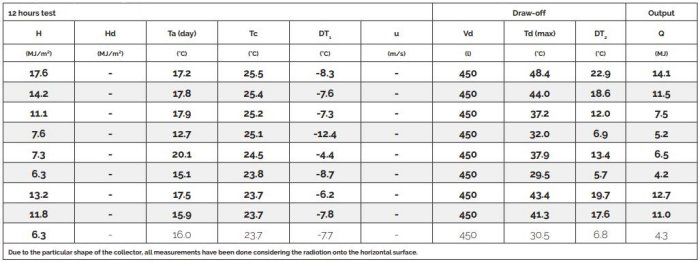

• System Thermal Performance, test results and data elaboration
• Geolocalisation of test site: Lat: 40° 09’N - 16°38’E (ENEA Trisaia)
• Positioning & orientation: towards SOUTH - 0° horizontal inclination
• Test date: October

The Manufacturer Sferasol Energy S.r.l. address: Via G. Pascoli, 1 – 10060 Scalenghe (TO) – ITALY declares under its own responsibility that the thermal solar collector named “Sferasol”SF-S model is conform to essential specificaitons of safetyaccording to the following direttives:

• 2006/42/CE (machines);
• 2006/95/CE (low voltage);
• 2004/108/CE (ECM).

The product is supplied with CE mark and user manual. The person authorized to fill in the technical data sheet is the legal representative of Sferasol Energy S.r.l. being in the Company seeds.
