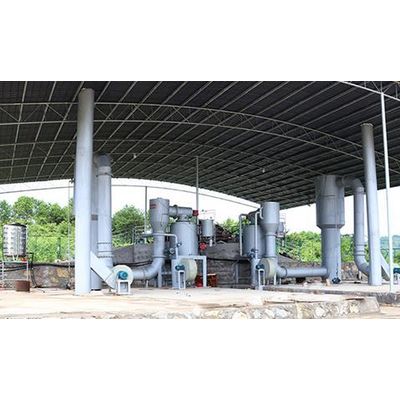

Shengde - Model HLPG - Municipal/Domestic Waste Incinerator
The domestic waste incinerator adopts the patented high-temperature pyrolysis gasification technology, which conforms to the 3T+E design principle; the entire system runs under negative pressure. If the temperature of the primary combustion chamber is above 550?, the burner will automatically shut down, and if the temperature of the secondary combustion chamber is above 850?, the burner will automatically shut down. The whole operation process does not require fuel to assist combustion, which saves operating costs. The system is fully enclosed, the flue gas does not leak, the combustion chamber temperature is stably controlled at 850-1200°C, and the flue gas residence time is ≥2s, so that the dioxin-like harmful substances are fully decomposed and discharged up to the standard.

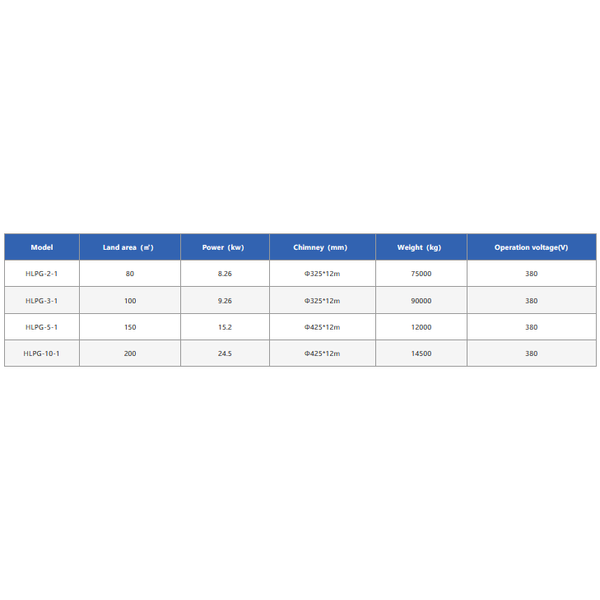

- Structure: vertical
- Capacity:100kg-20T/Day
- Equipment area (?): 80-200 (customizable)
- Power (kw): 8.26-24.5 (customizable)
- Chimney (mm): Φ325*12m-Φ425*12m (customizable)
- Weight (kg): 7500-14500 (customizable)
- Operating voltage V: 380 (customizable)
Applicable place/waste
-
- Solve the complex problem of garbage in towns and villages
- Solve the problem of large amount of garbage in towns
- Solve the problem of scattered and non-concentrated garbage in towns
- Solve the problem of random dumping of garbage in towns
Smokeless and odorless, meeting emission standards
The emission from the incinerator is smokeless and odorless, meeting the emission standards.
High temperature pyrolysis gasification technology
New high-temperature pyrolysis gasification technology, high-temperature incineration treatment, safe and pollution-free.
Simple structure and easy operation
Automatic control system, automatic temperature control, digital display, easy to operate and use.
