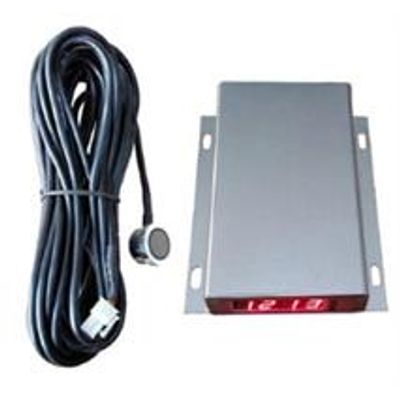

Shengke - Non-Intrusive Ultrasonic Fuel Tank Gauge
From Non-Intrusive Ultrasonic Fuel Tank Gauge
This non intrusive fuel tank gauge uses the sonar technology to measure the height of oil level in tank and output a standard electrical signal after through circuit processing. It could be widely used in various types of vehicles for fuel measuring and monitoring, also could be combined with GPS/GPRS communication technology, through the computer software management platform to achieve scientific management vehicles, prevent fuel theft behavior and save the vehicle operating cost.
-
Most popular related searches
Advantages
- High Accuracy is1mm.
- Non-intrusive technology, compare with the traditional measuring
- method of direct contact 、float-type 、pressure-type 、magnetic system of sliding, it does not contact the liquid directly and could be sure its stability and long-life.
- Easy installation. You need to install it on the bottom of fuel tank and no need to change the original tank structure, without punch or change the fuel tank and could measure the fuel capacity directly so that could be saving the cost of installation;
- It could be directly combined with the common GPS/GPRS transmission module to remote the liquid level value.
- Strong antistatic ability (EMC). It could eliminate most of the auto parts produced by electrostatic interference, even the lightning electromagnetic interference
- With standardization data interface. There are analog voltage (1-5V) and current (4-20mA) output, digital output of RS232 and RS485;
- Alarm output. It could be external horn and achieve alarm when the fuel level rapid declines or the wire was cut;
Technical Parameters
- Operating Voltage: DC9V-36V
- Operating current less than 55mA
- Measuring range:300cm
- Tank thickness: 1-20mm
- Pressure range: -0.1MPa~32MPa
- Dead zone: less then3mm
- Measurement accuracy1mm
- Output mode
- Analog output Voltage output (default) 1-5V (corresponding 0-300cm)
- Current output (optional4-20mA (corresponding 0-300cm)
- Digital output RS232 (default) See the “communication protocol”
- RS485 (optional)
- Anti-theft alarm output needs external connection an alarming horn to achieve alarm
- Install method bottom of oil tank/can, water tank
- Material of tank/container Steel、aluminum
- Operating temperature -40 ℃ - +80 ℃
- Cable length10m, with shield
Usage
- Fuel level measurement of various kinds of vehicles (anti-theft fuel);
- Oil and water level measure for industry with in 300mm.
